This section is maintained by Rachid Nouicer

No matter how fast you run, you can never catch the sun.
No matter how hard you work, your work will never be done

Physics Analysis :

1- Energy Threshould and Number of the Hit Event by Event (Rachid Nouicer) (in Progress)
Details : the study have been done event by event using data Au + Au at 200 GeV and also Monte Carlo simulation "Hijing" . The method is to make an histogram 3D (pseudorapidity, centrality and number of the hit pads).	Click here to Download the report ( Poscripte file)

2- First look on the data Au + Au at 20 GeV
Postscript files : Run_events_20GeV.ps SpecMainVertex_vx.ps SpecMainVertex_vy.ps ZVertexvz_20GeV.ps Energy_distribution_octagon_20_130_200GeV.ps Energy_distribution_Ring_20_130_200GeV.ps	Root fil es : Run_events_20GeV.root SpecMainVertex_vx.root SpecMainVertex_vy.root ZVertexvz_20GeV.root Energy_distribution_octagon_20_130_200GeV.root Energy_distribution_Ring_20GeV.root

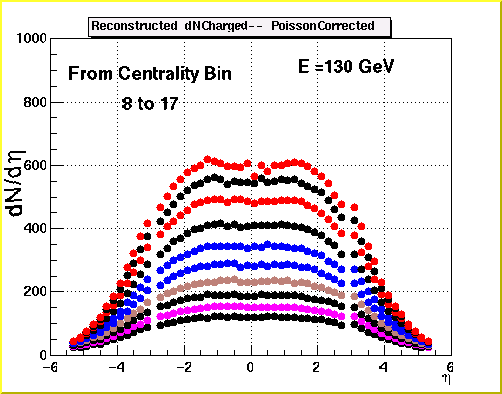

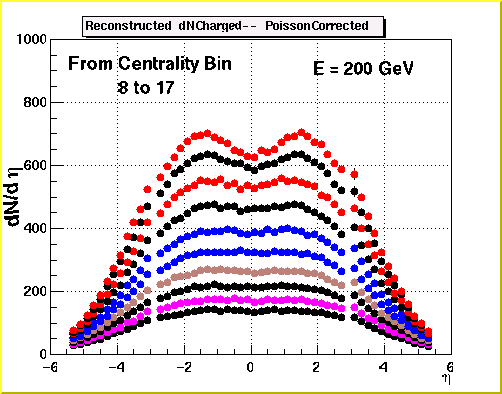

3 - Comparison of dN/dEta between Digital "Hit Counting" results and Analogue results for different centrality at 130 GeV and 200 GeV Rq : this is the status of the digital analysis and the work is in progress to fix the background in the ring counters. November 29, 2001	Postscript files : Au + Au at 130 GeV : dNdEta_CenBin08_130GeV.ps dNdEta_CenBin09_130GeV.ps dNdEta_CenBin10_130GeV.ps dNdEta_CenBin11_130GeV.ps dNdEta_CenBin12_130GeV.ps dNdEta_CenBin13_130GeV.ps dNdEta_CenBin14_130GeV.ps dNdEta_CenBin15_130GeV.ps dNdEta_CenBin16_130GeV.ps dNdEta_CenBin17_130GeV.ps	Postscript files : Au +Au at 200 GeV : dNdEta_CenBin08_200GeV.ps dNdEta_CenBin09_200GeV.ps dNdEta_CenBin10_200GeV.ps dNdEta_CenBin11_200GeV.ps dNdEta_cenBin12_200GeV.ps dNdEta_CenBin13_200GeV.ps dNdEta_CenBin14_200GeV.ps dNdEta_CenBin15_200GeV.ps dNdEta_CenBin16_200GeV.ps dNdEta_CenBin17_200GeV.ps
