4
Collections and Records

Knowledge is that area of ignorance that we arrange and classify.

Ambrose Bierce

Increasingly, programmers are using collection types such as arrays, bags, lists, nested tables, sets, and trees in traditional database applications. To meet the growing demand, PL/SQL provides the datatypes TABLE and VARRAY, which allow you to declare nested tables and variable-size arrays. In this chapter, you learn how those types let you reference and manipulate collections of data as whole objects. You also learn how the datatype RECORD lets you treat related but dissimilar data as a logical unit.

Major Topics
What Is a Collection?
Initializing and Referencing Collections
Assigning and Comparing Collections
Manipulating Collections
Using Collection Methods
Avoiding Collection Exceptions
What Is a Record?
Defining and Declaring Records
Initializing and Referencing Records
Assigning and Comparing Records
Manipulating Records

What Is a Collection?

A collection is an ordered group of elements, all of the same type (for example, the grades for a class of students). Each element has a unique subscript that determines its position in the collection. PL/SQL offers two kinds of collections: nested tables and varrays (short for variable-size arrays).

Collections work like the arrays found in most third-generation programming languages. However, collections can have only one dimension and must be indexed by integers. (In some languages such as Ada and Pascal, arrays can have multiple dimensions and can be indexed by enumeration types.)

Collections can store instances of an object type and, conversely, can be attributes of an object type. Also, collections can be passed as parameters. So, you can use them to move columns of data into and out of database tables or between client-side applications and stored subprograms. Furthermore, you can define collection types in a PL/SQL package, then use them programmatically in your applications.


Note:

To use nested tables and varrays, you must have the Oracle8 Enterprise Edition and the Objects Option. For more information, see Getting to Know Oracle8 and the Oracle8 Enterprise Edition.



Understanding Nested Tables

Items of type TABLE are called nested tables. Within the database, they can be viewed as one-column database tables. Oracle stores the rows of a nested table in no particular order. But, when you retrieve the nested table into a PL/SQL variable, the rows are given consecutive subscripts starting at 1. That gives you array-like access to individual rows.

Within PL/SQL, nested tables are like one-dimensional arrays. However, nested tables differ from arrays in two important ways. First, arrays have a fixed upper bound, but nested tables are unbounded (see Figure 4-1). So, the size of a nested table can increase dynamically.

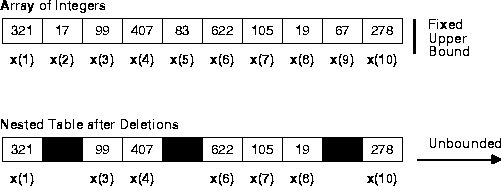

Figure 4-1 Array versus Nested Table

Second, arrays must be dense (have consecutive subscripts). So, you cannot delete individual elements from an array. Initially, nested tables are dense, but they can be sparse (have nonconsecutive subscripts). So, you can delete elements from a nested table using the built-in procedure DELETE. That might leave gaps in the index, but the built-in function NEXT lets you iterate over any series of subscripts.

Differences Between Nested Tables and Index-by Tables

Nested tables differ from Version 2 PL/SQL tables (called index-by tables from here on) in the following ways:

Understanding Varrays

Items of type VARRAY are called varrays. They allow you to associate a single identifier with an entire collection. This association lets you manipulate the collection as a whole and reference individual elements easily. To reference an element, you use standard subscripting syntax (see Figure 4-2). For example, Grade(3) references the third element in varray Grades.

Figure 4-2 Varray of Size 10

A varray has a maximum size, which you must specify in its type definition. Its index has a fixed lower bound of 1 and an extensible upper bound. For example, the current upper bound for varray Grades is 7, but you can extend it to 8, 9, or 10. Thus, a varray can contain a varying number of elements, from zero (when empty) to the maximum specified in its type definition.

Varrays versus Nested Tables

Nested tables differ from varrays in the following ways:

Which collection type should you use? That depends on your wants and the size of the collection. A varray is stored as an opaque object, whereas a nested table is stored in a storage table with every element mapped to a row in the storage table. So, if you want efficient queries, use nested tables. If you want to retrieve entire collections as a whole, use varrays. However, when collections get very large, it becomes impractical to retrieve more than subsets. So, varrays are better suited for small collections.

Defining and Declaring Collections

To create collections, you define a collection type, then declare collections of that type. You can define TABLE and VARRAY types in the declarative part of any PL/SQL block, subprogram, or package. For nested tables, you use the syntax

TYPE type_name IS TABLE OF element_type [NOT NULL];

and for varrays, you use the following syntax:

TYPE type_name IS {VARRAY | VARYING ARRAY} (size_limit)
   OF element_type [NOT NULL];

where type_name is a type specifier used later to declare collections, size_limit is a positive integer literal, and element_type is any PL/SQL datatype except

BINARY_INTEGER
BOOLEAN
LONG
LONG RAW
NATURAL
NATURALN
NCHAR
NCLOB
NVARCHAR2
object types with TABLE or VARRAY attributes
PLS_INTEGER
POSITIVE
POSITIVEN
REF CURSOR
SIGNTYPE
STRING
TABLE
VARRAY

If element_type is a record type, every field in the record must be a scalar type or an object type.

For index-by tables, you use the syntax

TYPE type_name IS TABLE OF element_type [NOT NULL]
   INDEX BY BINARY_INTEGER;

Though not allowed for nested tables or varrays, the following element types are allowed for index-by tables: BINARY_INTEGER, BOOLEAN, LONG, LONG RAW, NATURAL, NATURALN, PLS_INTEGER, POSITIVE, POSITIVEN, SIGNTYPE, and STRING. That is because nested tables and varrays are intended primarily to be columns of database tables. As such, they cannot access PL/SQL-specific types. When declared locally, they could theoretically use those types, but the restriction is preserved for consistency.

Unlike nested tables, which are initially dense, index-by tables are initially sparse. That enables you, for example, to store reference data in a temporary index-by table using a numeric primary key as the index. In the example below, you declare an index-by table of records. Each element of the table stores a row from the emp database table.

DECLARE
   TYPE EmpTabTyp IS TABLE OF emp%ROWTYPE
      INDEX BY BINARY_INTEGER;
   emp_tab EmpTabTyp;
BEGIN
   /* Retrieve employee record. */
   SELECT * INTO emp_tab(7468) WHERE empno = 7468;

When defining a VARRAY type, you must specify its maximum size. In the following example, you define a type that stores up to 366 dates:

DECLARE
   TYPE Calendar IS VARRAY(366) OF DATE;

To specify the element type, you can use %TYPE, which provides the datatype of a variable or database column. Also, you can use %ROWTYPE, which provides the rowtype of a cursor or database table. Two examples follow:

DECLARE
   TYPE EmpList IS TABLE OF emp.ename%TYPE;  -- based on column
   CURSOR c1 IS SELECT * FROM dept;
   TYPE DeptFile IS VARRAY(20) OF c1%ROWTYPE;  -- based on cursor

In the next example, you use a RECORD type to specify the element type:

DECLARE
   TYPE Entry IS RECORD (
      term    VARCHAR2(20),
      meaning VARCHAR2(200));
   TYPE Glossary IS VARRAY(250) OF Entry;

In the final example, you impose a NOT NULL constraint on the element type:

DECLARE
   TYPE EmpList IS TABLE OF emp.empno%TYPE NOT NULL;

An initialization clause is not required (or allowed).

Declaring Collections

Once you define a collection type, you can declare collections of that type, as the following SQL*Plus script shows:

CREATE TYPE CourseList AS TABLE OF VARCHAR2(10)  -- define TABLE type
/
CREATE TYPE Student AS OBJECT (  -- create object
   id_num  INTEGER(4),
   name    VARCHAR2(25),
   address VARCHAR2(35),
   status  CHAR(2),
   courses CourseList)  -- declare nested table as attribute
/

The identifier courses represents an entire nested table. Each element of courses will store the code name of a college course such as "Math 1020."

The script below creates a database column that stores varrays. Each element of the varrays will store a Project object.

CREATE TYPE Project AS OBJECT(  --create object
   project_no NUMBER(2),
   title      VARCHAR2(35),
   cost       NUMBER(7,2))
/
CREATE TYPE ProjectList AS VARRAY(50) OF Project  -- define VARRAY type
/
CREATE TABLE department (  -- create database table
   dept_id  NUMBER(2),
   name     VARCHAR2(15),
   budget   NUMBER(11,2),
   projects ProjectList)  -- declare varray as column
/

The following example shows that you can use %TYPE to provide the datatype of a previously declared collection:

DECLARE
   TYPE Platoon IS VARRAY(20) OF Soldier;
   p1 Platoon;
   p2 p1%TYPE;

You can declare collections as the formal parameters of functions and procedures. That way, you can pass collections to stored subprograms and from one subprogram to another. In the following example, you declare a nested table as the formal parameter of a packaged procedure:

CREATE PACKAGE personnel AS
   TYPE Staff IS TABLE OF Employee;
   ...
   PROCEDURE award_bonuses (members IN Staff);

Also, you can specify a collection type in the RETURN clause of a function specification, as the following example shows:

DECLARE
   TYPE SalesForce IS VARRAY(25) OF Salesperson;
   FUNCTION top_performers (n INTEGER) RETURN SalesForce IS ...

Collections follow the usual scoping and instantiation rules. In a block or subprogram, collections are instantiated when you enter the block or subprogram and cease to exist when you exit. In a package, collections are instantiated when you first reference the package and cease to exist when you end the database session.

Initializing and Referencing Collections

Until you initialize it, a collection is atomically null (that is, the collection itself is null, not its elements). To initialize a collection, you use a constructor, which is a system-defined function with the same name as the collection type. This function "constructs" collections from the elements passed to it. In the following example, you pass six elements to constructor CourseList(), which returns a nested table containing those elements:

DECLARE
   my_courses CourseList;
BEGIN
   my_courses := CourseList('Econ 2010', 'Acct 3401', 'Mgmt 3100',
      'PoSc 3141', 'Mktg 3312', 'Engl 2005');

In the next example, you pass three objects to constructor ProjectList(), which returns a varray containing those objects:

DECLARE
   accounting_projects ProjectList;
BEGIN
   accounting_projects :=
      ProjectList(Project(1, 'Design New Expense Report', 3250),
                  Project(2, 'Outsource Payroll', 12350),
                  Project(3, 'Audit Accounts Payable', 1425));

You need not initialize the whole varray. For example, if a varray has a maximum size of 50, you can pass fewer than 50 elements to its constructor.

If you did not impose the NOT NULL constraint or specify a record type for elements, you can pass null elements to a constructor. An example follows:

BEGIN
   my_courses := CourseList('Math 3010', NULL, NULL, 'Stat 3202', ...);

The next example shows that you can initialize a collection in its declaration, which is a good programming practice:

DECLARE
   my_courses CourseList := CourseList('Art 1111', 'Hist 3100', ...);

If you call a constructor without arguments, you get an empty but non-null collection, as the following example shows:

DECLARE
   TYPE Clientele IS VARRAY(100) OF Customer;
   vips Clientele := Clientele(); -- initialize empty varray
BEGIN
   IF vips IS NOT NULL THEN ...  -- condition yields TRUE

Except for index-by tables, PL/SQL never calls a constructor implicitly, so you must call it explicitly. Constructor calls are allowed wherever function calls are allowed. That includes the SELECT, VALUES, and SET clauses. In the example below, you insert a Student object into object table sophomores. The table constructor CourseList() provides a value for attribute courses.

BEGIN
   INSERT INTO sophomores
      VALUES (Student(5035, 'Janet Alvarez', '122 Brighton St', 'FT',
         CourseList('Econ 2010', 'Acct 3401', 'Mgmt 3100', ...)));

In the final example, you insert a row into database table department. The varray constructor ProjectList() provides a value for column projects.

BEGIN
   INSERT INTO department
      VALUES(60, 'Security', 750400,
         ProjectList(Project(1, 'Issue New Employee Badges', 13500),
                     Project(2, 'Find Missing Computer Chips', 2750),
                     Project(3, 'Inspect Emergency Exits', 1900)));

Referencing Collection Elements

Every element reference includes a collection name and a subscript enclosed in parentheses. The subscript determines which element is processed. To reference an element, you specify its subscript using the syntax

collection_name(subscript)

where subscript is an expression that yields a positive integer. For nested tables, the integer must lie in the range 1 .. 2147483647. For varrays, the integer must lie in the range 1 .. maximum_size.

You can reference a collection in all expression contexts. In the following example, you reference an element in nested table names:

DECLARE
   TYPE Roster IS TABLE OF VARCHAR2(15);
   names Roster := Roster('J Hamil', 'D Caruso', 'R Singh', ...);
   i BINARY_INTEGER;
BEGIN
   ...
   IF names(i) = 'J Hamil' THEN ...

The next example shows that you can reference the elements of a collection in subprogram calls:

DECLARE
   TYPE Roster IS TABLE OF VARCHAR2(15);
   names Roster := Roster('J Hamil', 'D Caruso', 'R Singh', ...);
   i BINARY_INTEGER;
BEGIN
   ...
   verify_name(names(i));  -- call procedure

When calling a function that returns a collection, you use the following syntax to reference elements in the collection:

function_name(parameter_list)(subscript)

For example, the following call references the third element in the varray returned by function new_hires:

DECLARE
   TYPE Staff IS VARRAY(20) OF Employee;
   staffer Employee;
   FUNCTION new_hires (hiredate DATE) RETURN Staff IS
   BEGIN
      ...
   END;
BEGIN
   staffer := new_hires('16-OCT-96')(3);  -- call function

Assigning and Comparing Collections

One collection can be assigned to another by an INSERT, UPDATE, FETCH, or SELECT statement, an assignment statement, or a subprogram call. As the example below shows, the collections must have the same datatype. Having the same element type is not enough.

DECLARE
   TYPE Clientele IS VARRAY(100) OF Customer;
   TYPE Vips IS VARRAY(100) OF Customer;
   group1 Clientele := Clientele(...);
   group2 Clientele := Clientele(...);
   group3 Vips := Vips(...);
BEGIN
   ...
   group2 := group1;
   group3 := group2;  -- illegal; different datatypes

If you assign an atomically null collection to another collection, the other collection becomes atomically null (and must be reinitialized). Consider the following example:

DECLARE
   TYPE Clientele IS TABLE OF Customer;
   group1 Clientele := Clientele(...);  -- initialized
   group2 Clientele;  -- atomically null
BEGIN
   IF group1 IS NULL THEN ...  -- condition yields FALSE
   group1 := group2;
   IF group1 IS NULL THEN ...  -- condition yields TRUE

Likewise, if you assign the non-value NULL to a collection, the collection becomes atomically null.

Assigning Collection Elements

You can assign the value of an expression to a specific element in a collection using the syntax

collection_name(subscript) := expression;

where expression yields a value of the type specified for elements in the collection type definition. If subscript is null or not convertible to an integer, PL/SQL raises the exception VALUE_ERROR. If the collection is atomically null, PL/SQL raises COLLECTION_IS_NULL. Some examples follow:

DECLARE
   TYPE NumList IS TABLE OF INTEGER;
   nums NumList := NumList(10,20,30);
   ints NumList;
   ...
BEGIN
   ...
   nums(1) := TRUNC(high/low);
   nums(3) := nums(1);
   nums(2) := ASCII('B');
   /* Assume that execution continues despite the raised exception. */
   nums('A') := 40; -- raises VALUE_ERROR
   ints(1) := 15;   -- raises COLLECTION_IS_NULL

Comparing Whole Collections

Collections can be atomically null, so they can be tested for nullity, as the following example shows:

DECLARE
   TYPE Staff IS TABLE OF Employee;
   members Staff;
BEGIN
   ...
   IF members IS NULL THEN ...  -- condition yields TRUE;

However, collections cannot be compared for equality or inequality. For instance, the following IF condition is illegal:

DECLARE
   TYPE Clientele IS TABLE OF Customer;
   group1 Clientele := Clientele(...);
   group2 Clientele := Clientele(...);
BEGIN
   ...
   IF group1 = group2 THEN ...  -- causes compilation error

This restriction also applies to implicit comparisons. For example, collections cannot appear in a DISTINCT, GROUP BY, or ORDER BY list.

Manipulating Collections

Within PL/SQL, collections add flexibility and procedural power. A big advantage is that your program can compute subscripts to process specific elements. Within SQL, you can manipulate whole collections easily.

Some Nested Table Examples

In SQL*Plus, suppose you define object type Course, as follows:

SQL> CREATE TYPE Course AS OBJECT (
  2  course_no NUMBER(4),
  3  title     VARCHAR2(35),
  4  credits    NUMBER(1));

Next, you define TABLE type CourseList, which stores Course objects:

SQL> CREATE TYPE CourseList AS TABLE OF Course;

Finally, you create database table department, which has a column of type CourseList, as follows:

SQL> CREATE TABLE department (
  2  name     VARCHAR2(20),
  3  director VARCHAR2(20),
  4  office   VARCHAR2(20),
  5  courses  CourseList)
  6  NESTED TABLE courses STORE AS courses_tab;

Each item in column courses is a nested table that will store the courses offered by a given department. The NESTED TABLE clause is required because department has a nested table column. The clause identifies the nested table and names a system-generated store table, in which Oracle stores data out-of-line (in another tablespace).

Now, you can populate database table department. In the following example, notice how table constructor CourseList() provides values for column courses:

BEGIN
   INSERT INTO department
      VALUES('Psychology', 'Irene Friedman', 'Fulton Hall 133',
         CourseList(Course(1000, 'General Psychology', 5),
                    Course(2100, 'Experimental Psychology', 4),
                    Course(2200, 'Psychological Tests', 3),
                    Course(2250, 'Behavior Modification', 4),
                    Course(3540, 'Groups and Organizations', 3),
                    Course(3552, 'Human Factors in the Workplace', 4),
                    Course(4210, 'Theories of Learning', 4),
                    Course(4320, 'Cognitive Processes', 4),
                    Course(4410, 'Abnormal Psychology', 4)));
   INSERT INTO department
      VALUES('History', 'John Whalen', 'Applegate Hall 142',
         CourseList(Course(1011, 'History of Europe I', 4),
                    Course(1012, 'History of Europe II', 4),
                    Course(1202, 'American History', 5),
                    Course(2130, 'The Renaissance', 3),
                    Course(2132, 'The Reformation', 3),
                    Course(3105, 'History of Ancient Greece', 4),
                    Course(3321, 'Early Japan', 4),
                    Course(3601, 'Latin America Since 1825', 4),
                    Course(3702, 'Medieval Islamic History', 4)));
   INSERT INTO department
      VALUES('English', 'Lynn Saunders', 'Breakstone Hall 205',
         CourseList(Course(1002, 'Expository Writing', 3),
                    Course(2020, 'Film and Literature', 4),
                    Course(2418, 'Modern Science Fiction', 3),
                    Course(2810, 'Discursive Writing', 4),
                    Course(3010, 'Modern English Grammar', 3),
                    Course(3720, 'Introduction to Shakespeare', 4),
                    Course(3760, 'Modern Drama', 4),
                    Course(3822, 'The Short Story', 4),
                    Course(3870, 'The American Novel', 5)));

In the following example, you revise the list of courses offered by the English Department:

DECLARE
   new_courses CourseList :=
         CourseList(Course(1002, 'Expository Writing', 3),
                    Course(2020, 'Film and Literature', 4),
                    Course(2810, 'Discursive Writing', 4),
                    Course(3010, 'Modern English Grammar', 3),
                    Course(3550, 'Realism and Naturalism', 4),
                    Course(3720, 'Introduction to Shakespeare', 4),
                    Course(3760, 'Modern Drama', 4),
                    Course(3822, 'The Short Story', 4),
                    Course(3870, 'The American Novel', 4),
                    Course(4210, '20th-Century Poetry', 4),
                    Course(4720, 'Advanced Workshop in Fiction', 5),
                    Course(4725, 'Advanced Workshop in Poetry', 5));
BEGIN
   UPDATE department
      SET courses = new_courses WHERE name = 'English';

In the next example, you retrieve all the courses offered by the Psychology Department into a local nested table:

DECLARE
   psyc_courses CourseList;
BEGIN
   SELECT courses INTO psyc_courses FROM department
      WHERE name = 'Psychology';

Some Varray Examples

In SQL*Plus, suppose you define object type Project, as follows:

SQL> CREATE TYPE Project AS OBJECT (
  2  project_no NUMBER(2),
  3  title      VARCHAR2(35),
  4  cost        NUMBER(7,2));

Next, you define VARRAY type ProjectList, which stores Project objects:

SQL> CREATE TYPE ProjectList AS VARRAY(50) OF Project;

Finally, you create relational table department, which has a column of type ProjectList, as follows:

SQL> CREATE TABLE department (
  2  dept_id  NUMBER(2),
  3  name     VARCHAR2(15),
  4  budget   NUMBER(11,2),
  5  projects ProjectList);

Each item in column projects is a varray that will store the projects scheduled for a given department.

Now, you are ready to populate relational table department. In the following example, notice how varray constructor ProjectList() provides values for column projects:

BEGIN
   INSERT INTO department
      VALUES(30, 'Accounting', 1205700,
         ProjectList(Project(1, 'Design New Expense Report', 3250),
                     Project(2, 'Outsource Payroll', 12350),
                     Project(3, 'Evaluate Merger Proposal', 2750),
                     Project(4, 'Audit Accounts Payable', 1425)));
   INSERT INTO department
      VALUES(50, 'Maintenance', 925300,
         ProjectList(Project(1, 'Repair Leak in Roof', 2850),
                     Project(2, 'Install New Door Locks', 1700),
                     Project(3, 'Wash Front Windows', 975),
                     Project(4, 'Repair Faulty Wiring', 1350),
                     Project(5, 'Winterize Cooling System', 1125)));
   INSERT INTO department
      VALUES(60, 'Security', 750400,
         ProjectList(Project(1, 'Issue New Employee Badges', 13500),
                     Project(2, 'Find Missing Computer Chips', 2750),
                     Project(3, 'Upgrade Alarm System', 3350),
                     Project(4, 'Inspect Emergency Exits', 1900)));

In the following example, you update the list of projects assigned to the Security Department:

DECLARE
   new_projects ProjectList :=
      ProjectList(Project(1, 'Issue New Employee Badges', 13500),
                  Project(2, 'Develop New Patrol Plan', 1250),
                  Project(3, 'Inspect Emergency Exits', 1900),
                  Project(4, 'Upgrade Alarm System', 3350),
                  Project(5, 'Analyze Local Crime Statistics', 825));
BEGIN
   UPDATE department
      SET projects = new_projects WHERE dept_id = 60;

In the next example, you retrieve all the projects for the Accounting Department into a local varray:

DECLARE
   my_projects ProjectList;
BEGIN
   SELECT projects INTO my_projects FROM department
      WHERE dept_id = 30;

In the final example, you delete the Accounting Department and its project list from table department:

BEGIN
   DELETE FROM department WHERE dept_id = 30;

Manipulating Individual Elements

So far, you have manipulated whole collections. Within SQL, to manipulate the individual elements of a nested table, you must use the operator THE. However, THE cannot operate on varrays. So, to manipulate the individual elements of a varray, you must use PL/SQL procedural statements.

Some Nested Table Examples

In the following example, you add a row to the History Department nested table stored in column courses:

BEGIN
   INSERT INTO
      THE(SELECT courses FROM department
             WHERE name = 'History')
      VALUES(3340, 'Modern China', 4);

The operand of THE is a subquery that returns a single column value for you to manipulate. The column value must be a nested table. Otherwise, you get a runtime error. Because the value is a nested table, not a scalar value, Oracle must be informed, which is what operator THE does.

In the following example, you revise the number of credits for two courses offered by the Psychology Department:

DECLARE
   adjustment INTEGER DEFAULT 1;
   ...
BEGIN
   ...
   UPDATE
      THE(SELECT courses FROM department
             WHERE name = 'Psychology')
      SET credits = credits + adjustment
      WHERE course_no IN (2200, 3540);

In the next example, you retrieve the number and title of a specific course offered by the History Department:

DECLARE
   my_course_no NUMBER(4);
   my_title     VARCHAR2(35);
   ...
BEGIN
   SELECT course_no, title INTO my_course_no, my_title
      FROM THE(SELECT courses FROM department
                  WHERE name = 'History')
      WHERE course_no = 3105;

In the final example, you delete all 5-credit courses offered by the English Department:

BEGIN
   DELETE THE(SELECT courses FROM department
                 WHERE name = 'English')
      WHERE credits = 5;

Some Varray Examples

Remember, within SQL, you cannot manipulate the individual elements of a varray. You must use PL/SQL procedural statements. In the following example, stored procedure add_project inserts a new project into a department's project list at a given position:

CREATE PROCEDURE add_project (
      dept_no     IN NUMBER,
      new_project IN Project,
      position    IN NUMBER) AS
   my_projects ProjectList;
BEGIN
   /* Retrieve project list into local varray. */
   SELECT projects INTO my_projects FROM department
      WHERE dept_no = dept_id FOR UPDATE OF projects;
   /* Extend varray to make room for new project. */
   my_projects.EXTEND;
   /* Move varray elements forward. */
   FOR i IN REVERSE position..my_projects.LAST - 1 LOOP
      my_projects(i + 1) := my_projects(i);
   END LOOP;
   /* Insert new project. */
   my_projects(position) := new_project;
   /* Update department table. */
   UPDATE department SET projects = my_projects
      WHERE dept_no = dept_id;
END add_project;

The following stored procedure updates a given project:

CREATE PROCEDURE update_project (
      dept_no   IN NUMBER,
      proj_no   IN NUMBER,
      new_title IN VARCHAR2 DEFAULT NULL,
      new_cost  IN NUMBER DEFAULT NULL) AS
   my_projects ProjectList;
BEGIN
   SELECT projects INTO my_projects FROM department
      WHERE dept_no = dept_id FOR UPDATE OF projects;
   /* Find project, update it, then exit loop immediately. */
   FOR i IN my_projects.FIRST..my_projects.LAST LOOP
      IF my_projects(i).project_no = proj_no THEN
         IF new_title IS NOT NULL THEN
            my_projects(i).title := new_title;
         END IF;
         IF new_cost IS NOT NULL THEN
            my_projects(i).cost := new_cost;
         END IF;
         EXIT;
      END IF;
   END LOOP;
   UPDATE department SET projects = my_projects
      WHERE dept_no = dept_id;
END update_project;

In the final example, you call stand-alone procedure update_project to revise the cost of a project:

DECLARE
   dept_num NUMBER;
   proj_num NUMBER;
   ...
BEGIN
   ...
   update_project(dept_num, proj_num, new_cost => 3750);

Using Collection Methods

The following collection methods help generalize code, make collections easier to use, and make your applications easier to maintain:

EXISTS
COUNT
LIMIT
FIRST and LAST
PRIOR and NEXT
EXTEND
TRIM
DELETE

A collection method is a built-in function or procedure that operates on collections and is called using dot notation. The syntax follows:

collection_name.method_name[(parameters)]

Collection methods can be called from procedural statements but not from SQL statements. EXISTS, COUNT, LIMIT, FIRST, LAST, PRIOR, and NEXT are functions, which appear as part of an expression. EXTEND, TRIM, and DELETE are procedures, which appear as a statement. Also, EXISTS, PRIOR, NEXT, TRIM, EXTEND, and DELETE take parameters. Each parameter must be an expression that yields an integer.

Only EXISTS can be applied to atomically null collections. If you apply another method to such collections, PL/SQL raises COLLECTION_IS_NULL.

Using EXISTS

EXISTS(n) returns TRUE if the nth element in a collection exists. Otherwise, EXISTS(n) returns FALSE. Mainly, you use EXISTS with DELETE to maintain sparse nested tables. You can also use EXISTS to avoid raising an exception when you reference a nonexistent element. In the following example, PL/SQL executes the assignment statement only if element i exists:

IF courses.EXISTS(i) THEN
   courses(i) := new_course; ...

When passed an out-of-range subscript, EXISTS returns FALSE instead of raising SUBSCRIPT_OUTSIDE_LIMIT.

Using COUNT

COUNT returns the number of elements that a collection currently contains. For instance, if varray projects contains 15 elements, the following IF condition is true:

IF projects.COUNT = 15 THEN ...

COUNT is useful because the current size of a collection is not always known. For example, if you fetch a column of Oracle data into a nested table, how many elements does the table contain? COUNT gives you the answer.

You can use COUNT wherever an integer expression is allowed. In the next example, you use COUNT to specify the upper bound of a loop range:

FOR i IN 1..courses.COUNT LOOP ...

For varrays, COUNT always equals LAST. For nested tables, COUNT normally equals LAST. But, if you delete elements from the middle of a nested table, COUNT becomes smaller than LAST.

When tallying elements, COUNT ignores deleted elements.

Using LIMIT

For nested tables, which have no maximum size, LIMIT returns NULL. For varrays, LIMIT returns the maximum number of elements that a varray can contain (which you specify in its type definition). For instance, if the maximum size of varray projects is 25 elements, the following IF condition is true:

IF projects.LIMIT = 25 THEN ...

You can use LIMIT wherever an integer expression is allowed. In the following example, you use LIMIT to determine if you can add 20 more elements to varray projects:

IF (projects.COUNT + 20) < projects.LIMIT THEN
   -- add 20 more elements

Using FIRST and LAST

FIRST and LAST return the first and last (smallest and largest) index numbers in a collection. If the collection is empty, FIRST and LAST return NULL. If the collection contains only one element, FIRST and LAST return the same index number, as the following example shows:

IF courses.FIRST = courses.LAST THEN ...  -- only one element

The next example shows that you can use FIRST and LAST to specify the lower and upper bounds of a loop range provided each element in that range exists:

FOR i IN courses.FIRST..courses.LAST LOOP ...

In fact, you can use FIRST or LAST wherever an integer expression is allowed. In the following example, you use FIRST to initialize a loop counter:

i := courses.FIRST;
WHILE i IS NOT NULL LOOP ...

For varrays, FIRST always returns 1 and LAST always equals COUNT. For nested tables, FIRST normally returns 1. But, if you delete elements from the beginning of a nested table, FIRST returns a number larger than 1. Also for nested tables, LAST normally equals COUNT. But, if you delete elements from the middle of a nested table, LAST becomes larger than COUNT.

When scanning elements, FIRST and LAST ignore deleted elements.

Using PRIOR and NEXT

PRIOR(n) returns the index number that precedes index n in a collection. NEXT(n) returns the index number that succeeds index n. If n has no predecessor, PRIOR(n) returns NULL. Likewise, if n has no successor, NEXT(n) returns NULL.

PRIOR and NEXT do not wrap from one end of a collection to the other. For example, the following statement assigns NULL to n because the first element in a collection has no predecessor:

n := courses.PRIOR(courses.FIRST);  -- assigns NULL to n

PRIOR is the inverse of NEXT. For instance, if element i exists, the following statement assigns element i to itself:

projects(i) := projects.PRIOR(projects.NEXT(i));  -- assigns element i

You can use PRIOR or NEXT to traverse collections indexed by any series of subscripts. In the following example, you use NEXT to traverse a nested table from which some elements have been deleted:

i := courses.FIRST;  -- get subscript of first elementWhen tallying elements,
WHILE i IS NOT NULL LOOP
   -- do something with courses(i)
   i := courses.NEXT(i);  -- get subscript of next element
END LOOP;

When traversing elements, PRIOR and NEXT ignore deleted elements.

Using EXTEND

To increase the size of a collection, you use EXTEND. This procedure has three forms. EXTEND appends one null element to a collection. EXTEND(n) appends n null elements to a collection. EXTEND(n,i) appends n copies of the ith element to a collection. For example, the following statement appends 5 copies of element 1 to nested table courses:

courses.EXTEND(5,1);

You cannot use EXTEND to initialize an atomically null collection. Also, if you impose the NOT NULL constraint on a TABLE or VARRAY type, you cannot apply the first two forms of EXTEND to collections of that type.

EXTEND operates on the internal size of a collection, which includes any deleted elements. So, if EXTEND encounters deleted elements, it includes them in its tally. PL/SQL keeps placeholders for deleted elements so that you can replace them if you wish. Consider the following example:

DECLARE
   TYPE CourseList IS TABLE OF VARCHAR2(10);
   courses CourseList;
BEGIN
   courses := CourseList('Biol 4412', 'Psyc 3112', 'Anth 3001');
   courses.DELETE(3);  -- delete element 3
   /* PL/SQL keeps a placeholder for element 3. So, the
      next statement appends element 4, not element 3. */
   courses.EXTEND;  -- append one null element
   /* Now element 4 exists, so the next statement does
      not raise SUBSCRIPT_BEYOND_COUNT. */
   courses(4) := 'Engl 2005';

When it includes deleted elements, the internal size of a nested table differs from the values returned by COUNT and LAST. For instance, if you initialize a nested table with five elements, then delete elements 2 and 5, the internal size is 5, COUNT returns 3, and LAST returns 4. All deleted elements (whether leading, medial, or trailing) are treated alike.

Using TRIM

This procedure has two forms. TRIM removes one element from the end of a collection. TRIM(n) removes n elements from the end of a collection. For example, the following statement removes the last three elements from nested table courses:

courses.TRIM(3);

If n is greater than COUNT, TRIM(n) raises SUBSCRIPT_BEYOND_COUNT.

TRIM operates on the internal size of a collection. So, if TRIM encounters deleted elements, it includes them in its tally. Consider the following example:

DECLARE
   TYPE CourseList IS TABLE OF VARCHAR2(10);
   courses CourseList;
BEGIN
   courses := CourseList('Biol 4412', 'Psyc 3112', 'Anth 3001');
   courses.DELETE(courses.LAST);  -- delete element 3
   /* At this point, COUNT equals 2, the number of valid
      elements remaining. So, you might expect the next
      statement to empty the nested table by trimming
      elements 1 and 2. Instead, it trims valid element 2
      and deleted element 3 because TRIM includes deleted
      elements in its tally. */
   courses.TRIM(courses.COUNT);
   DBMS_OUTPUT.PUT_LINE(courses(1));  -- prints 'Biol 4412'

In general, do not depend on the interaction between TRIM and DELETE. It is better to treat nested tables like fixed-size arrays and use only DELETE, or to treat them like stacks and use only TRIM and EXTEND.

PL/SQL does not keep placeholders for trimmed elements. So, you cannot replace a trimmed element simply by assigning it a new value.

Using DELETE

This procedure has three forms. DELETE removes all elements from a collection. DELETE(n) removes the nth element from a nested table. If n is null, DELETE(n) does nothing. DELETE(m,n) removes all elements in the range m..n from a nested table. If m is larger than n or if m or n is null, DELETE(m,n) does nothing. Some examples follow:

BEGIN
   ...
   courses.DELETE(2);    -- deletes element 2
   courses.DELETE(7,7);  -- deletes element 7
   courses.DELETE(6,3);  -- does nothing
   courses.DELETE(3,6);  -- deletes elements 3 through 6
   projects.DELETE;      -- deletes all elements
END;

Varrays are dense, so you cannot delete their individual elements.

If an element to be deleted does not exist, DELETE simply skips it; no exception is raised. PL/SQL keeps placeholders for deleted elements. So, you can replace a deleted element simply by assigning it a new value.

DELETE allows you to maintain sparse nested tables. In the following example, you retrieve nested table prospects into a temporary table, prune it, then store it back in the database:

DECLARE
   my_prospects ProspectList;
   revenue      NUMBER;
BEGIN
   SELECT prospects INTO my_prospects FROM customers WHERE ...
   FOR i IN my_prospects.FIRST..my_prospects.LAST LOOP
      estimate_revenue(my_prospects(i), revenue);  -- call procedure
      IF revenue < 25000 THEN
         my_prospects.DELETE(i);
      END IF;
   END LOOP;
   UPDATE customers SET prospects = my_prospects WHERE ...

The amount of memory allocated to a nested table can increase or decrease dynamically. As you delete elements, memory is freed page by page. If you delete the entire table, all the memory is freed.

Applying Methods to Collection Parameters

Within a subprogram, a collection parameter assumes the properties of the argument bound to it. So, you can apply methods FIRST, LAST, COUNT, and so on to such parameters. In the following example, a nested table is declared as the formal parameter of a packaged procedure:

CREATE PACKAGE personnel AS
   TYPE Staff IS TABLE OF Employee;
   ...
   PROCEDURE award_bonuses (members IN Staff);
END personnel;
CREATE PACKAGE BODY personnel AS
   ...
   PROCEDURE award_bonuses (members IN Staff) IS
   BEGIN
      ...
      IF members.COUNT > 10 THEN  -- apply method
         ...
      END IF;
   END;;
END personnel;

For varray parameters, the value of LIMIT is always derived from the parameter type definition, regardless of the parameter mode.

Avoiding Collection Exceptions

In most cases, if you reference a nonexistent collection element, PL/SQL raises a predefined exception. Consider the following example:

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   nums NumList;  -- atomically null
BEGIN
   /* Assume that execution continues despite the raised exceptions. */
   nums(1) := 1;            -- raises COLLECTION_IS_NULL       (1)
   nums := NumList(1,2);  -- initialize table
   nums(NULL) := 3          -- raises VALUE_ERROR              (2)
   nums(0) := 3;            -- raises SUBSCRIPT_OUTSIDE_LIMIT  (3)
   nums(3) := 3;            -- raises SUBSCRIPT_BEYOND_COUNT   (4)
   nums.DELETE(1);  -- delete element 1
   IF nums(1) = 1 THEN ...  -- raises NO_DATA_FOUND            (5)

In the first case, the nested table is atomically null. In the second case, the subscript is null. In the third case, the subscript is outside the legal range. In the fourth case, the subscript exceeds the number of elements in the table. In the fifth case, the subscript designates a deleted element.

The following list shows when a given exception is raised:

Exception   Raised when ...
COLLECTION_IS_NULL


collection is atomically null

NO_DATA_FOUND


subscript designates an element that was deleted

SUBSCRIPT_BEYOND_COUNT


subscript exceeds number of elements in collection

SUBSCRIPT_OUTSIDE_LIMIT


subscript is outside the legal range

VALUE_ERROR


subscript is null or not convertible to an integer

In some cases, you can pass "invalid" subscripts to a method without raising an exception. For instance, when you pass a null subscript to procedure DELETE, it does nothing. Also, you can replace deleted elements without raising NO_DATA_FOUND, as the following example shows:

DECLARE
   TYPE NumList IS TABLE OF NUMBER;
   nums NumList := NumList(10,20,30);  -- initialize table
BEGIN
   nums.DELETE(-1);  -- does not raise SUBSCRIPT_OUTSIDE_LIMIT
   nums.DELETE(3);  -- delete 3rd element
   DBMS_OUTPUT.PUT_LINE(nums.COUNT);  -- prints 2
   nums(3) := 30;  -- does not raise NO_DATA_FOUND
   DBMS_OUTPUT.PUT_LINE(nums.COUNT);  -- prints 3

What Is a Record?

A record is a group of related data items stored in fields, each with its own name and datatype. Suppose you have various data about an employee such as name, salary, and hire date. These items are logically related but dissimilar in type. A record containing a field for each item lets you treat the data as a logical unit. Thus, records make it easier to organize and represent information.

The attribute %ROWTYPE lets you declare a record that represents a row in a database table. However, you cannot specify the datatypes of fields in the record or declare fields of your own. The datatype RECORD lifts those restrictions and lets you define your own records.

Defining and Declaring Records

To create records, you define a RECORD type, then declare records of that type. You can define RECORD types in the declarative part of any PL/SQL block, subprogram, or package using the syntax

TYPE type_name IS RECORD (field_declaration[, field_declaration]...);

where field_declaration stands for

field_name field_type [[NOT NULL] {:= | DEFAULT} expression]

and where type_name is a type specifier used later to declare records, field_type is any PL/SQL datatype except REF CURSOR, and expression yields a value of type field_type.


Note:

Unlike TABLE and VARRAY types, RECORD types cannot be CREATEd and stored in the database.



You can use %TYPE and %ROWTYPE to specify field types. In the following example, you define a RECORD type named DeptRec:

DECLARE
   TYPE DeptRec IS RECORD (
      dept_id   dept.deptno%TYPE,
      dept_name VARCHAR2(15),
      dept_loc  VARCHAR2(15));

Notice that field declarations are like variable declarations. Each field has a unique name and specific datatype. So, the value of a record is actually a collection of values, each of which is of some simpler type.

As the example below shows, PL/SQL lets you define records that contain objects, collections, and other records (called nested records). However, object types cannot have attributes of type RECORD.

DECLARE
   TYPE TimeRec IS RECORD (
      seconds SMALLINT,
      minutes SMALLINT,
      hours   SMALLINT);
   TYPE FlightRec IS RECORD (
      flight_no   INTEGER,
      plane_id     VARCHAR2(10),
      captain      Employee,  -- declare object
      passengers   PassengerList,  -- declare varray
      depart_time  TimeRec,  -- declare nested record
      airport_code VARCHAR2(10));

The next example shows that you can specify a RECORD type in the RETURN clause of a function specification. That allows the function to return a user-defined record of the same type.

DECLARE
   TYPE EmpRec IS RECORD (
      emp_id    INTEGER
      last_name VARCHAR2(15),
      dept_num  INTEGER(2),
      job_title VARCHAR2(15),
      salary    REAL(7,2));
   ...
   FUNCTION nth_highest_salary (n INTEGER) RETURN EmpRec IS ...

Declaring Records

Once you define a RECORD type, you can declare records of that type, as the following example shows:

DECLARE
   TYPE StockItem IS RECORD (
      item_no     INTEGER(3),
      description VARCHAR2(50),
      quantity    INTEGER,
      price       REAL(7,2));
   item_info StckItem;  -- declare record

The identifier item_info represents an entire record.

Like scalar variables, user-defined records can be declared as the formal parameters of procedures and functions. An example follows:

DECLARE
   TYPE EmpRec IS RECORD (
      emp_id    emp.empno%TYPE,
      last_name VARCHAR2(10),
      job_title VARCHAR2(15),
      salary    NUMBER(7,2));
   ...
   PROCEDURE raise_salary (emp_info EmpRec);

Initializing and Referencing Records

The example below shows that you can initialize a record in its type definition. When you declare a record of type TimeRec, its three fields assume an initial value of zero.

DECLARE
   TYPE TimeRec IS RECORD (
      seconds SMALLINT := 0,
      minutes SMALLINT := 0,
      hours   SMALLINT := 0);

The next example shows that you can impose the NOT NULL constraint on any field, and so prevent the assigning of nulls to that field. Fields declared as NOT NULL must be initialized.

DECLARE
   TYPE StockItem IS RECORD (
      item_no     INTEGER(3) NOT NULL := 999,
      description VARCHAR2(50),
      quantity    INTEGER,
      price       REAL(7,2));

Referencing Records

Unlike elements in a collection, which are accessed using subscripts, fields in a record are accessed by name. To reference an individual field, you use dot notation and the following syntax:

record_name.field_name

For example, you reference field hire_date in record emp_info as follows:

emp_info.hire_date ...

When calling a function that returns a user-defined record, you use the following syntax to reference fields in the record:

function_name(parameters).field_name

For example, the following call to function nth_highest_sal references the field salary in record emp_info:

DECLARE
   TYPE EmpRec IS RECORD (
      emp_id    NUMBER(4),
      job_title CHAR(14),
      salary    REAL(7,2));
   middle_sal REAL;
   FUNCTION nth_highest_sal (n INTEGER) RETURN EmpRec IS
      emp_info EmpRec;
   BEGIN
      ...
      RETURN emp_info;  -- return record
   END;
BEGIN
   middle_sal := nth_highest_sal(10).salary;  -- call function

When calling a parameterless function, you use the following syntax:

function_name().field_name  -- note empty parameter list

To reference nested fields in a record returned by a function, you use extended dot notation. For instance, the following call to function item references the nested field minutes in record item_info:

DECLARE
   TYPE TimeRec IS RECORD (
      minutes SMALLINT,
      hours   SMALLINT);
   TYPE AgendaItem IS RECORD (
      priority INTEGER,
      subject  VARCHAR2(100),
      duration TimeRec);
   FUNCTION item (n INTEGER) RETURN AgendaItem IS
      item_info AgendaItem;
   BEGIN
      ...
      RETURN item_info;  -- return record
   END;
BEGIN
   ...
   IF item(3).duration.minutes > 30 THEN ...  -- call function

You also use extended dot notation to reference the attributes of an object stored in a field, as the following example shows:

DECLARE
   TYPE FlightRec IS RECORD (
      flight_no    INTEGER,
      plane_id     VARCHAR2(10),
      captain      Employee,  -- declare object
      passengers   PassengerList,  -- declare varray
      depart_time  TimeRec,  -- declare nested record
      airport_code VARCHAR2(10));
   flight FlightRec;
BEGIN
   ...
   IF flight.captain.name = 'H Rawlins' THEN ...

Assigning and Comparing Records

You can assign the value of an expression to a specific field in a record using the following syntax:

record_name.field_name := expression;

In the following example, you convert an employee name to upper case:

emp_info.ename := UPPER(emp_info.ename);

Instead of assigning values separately to each field in a record, you can assign values to all fields at once. This can be done in two ways.

First, you can assign one user-defined record to another if they have the same datatype. Having fields that match exactly is not enough. Consider the following example:

DECLARE
   TYPE DeptRec IS RECORD (
      dept_num  NUMBER(2),
      dept_name VARCHAR2(14),
      location  VARCHAR2(13));
   TYPE DeptItem IS RECORD (
      dept_num  NUMBER(2),
      dept_name VARCHAR2(14),
      location  VARCHAR2(13));
   dept1_info DeptRec;
   dept2_info DeptItem;
BEGIN
   ...
   dept1_info := dept2_info;  -- illegal; different datatypes

As the next example shows, you can assign a %ROWTYPE record to a user-defined record if their fields match in number and order, and corresponding fields have compatible datatypes:

DECLARE
   TYPE DeptRec IS RECORD (
      dept_num  NUMBER(2),
      dept_name CHAR(14),
      location  CHAR(13));
   dept1_info DeptRec;
   dept2_info dept%ROWTYPE;
BEGIN
   SELECT * INTO dept2_info FROM dept WHERE deptno = 10;
   dept1_info := dept2_info;

Second, you can use the SELECT or FETCH statement to fetch column values into a record, as the example below shows. The columns in the select-list must appear in the same order as the fields in your record.

DECLARE
   TYPE DeptRec IS RECORD (
      dept_num  NUMBER(2),
      dept_name CHAR(14),
      location  CHAR(13));
   dept_info DeptRec;
BEGIN
   SELECT deptno, dname, loc INTO dept_info FROM dept WHERE deptno = 20;

However, you cannot use the INSERT statement to insert user-defined records into a database table. So, the following statement is illegal:

INSERT INTO dept VALUES (dept_info);  -- illegal

Also, you cannot assign a list of values to a record using an assignment statement. Therefore, the following syntax is illegal:

record_name := (value1, value2, value3, ...);  -- illegal

The example below shows that you can assign one nested record to another if they have the same datatype. Such assignments are allowed even if the enclosing records have different datatypes.

DECLARE
   TYPE TimeRec IS RECORD (minutes SMALLINT, hours SMALLINT);
   TYPE MeetingRec IS RECORD (
      day     DATE,
      time    TimeRec,  -- nested record
      room_no INTEGER(4));
   TYPE PartyRec IS RECORD (
      day   DATE,
      time  TimeRec,  -- nested record
      place VARCHAR2(25));
   seminar MeetingRec;
   party   PartyRec;
BEGIN
   ...
   party.time := seminar.time;

Comparing Records

Records cannot be tested for nullity, equality, or inequality. For instance, the following IF conditions are illegal:

BEGIN
   ...
   IF emp_info IS NULL THEN ...  -- illegal
   IF dept2_info > dept1_info THEN ...  -- illegal

Manipulating Records

The datatype RECORD lets you collect information about the attributes of something. The information is easy to manipulate because you can refer to the collection as a whole. In the following example, you collect accounting figures from database tables assets and liabilities, then use ratio analysis to compare the performance of two subsidiary companies:

DECLARE
   TYPE FiguresRec IS RECORD (cash REAL, notes REAL, ...);
   sub1_figs FiguresRec;
   sub2_figs FiguresRec;
   ...
   FUNCTION acid_test (figs FiguresRec) RETURN REAL IS ...
BEGIN
   SELECT cash, notes, ... INTO sub1_figs FROM assets, liabilities
      WHERE assets.sub = 1 AND liabilities.sub = 1;
   SELECT cash, notes, ... INTO sub2_figs FROM assets, liabilities
      WHERE assets.sub = 2 AND liabilities.sub = 2;
   IF acid_test(sub1_figs) > acid_test(sub2_figs) THEN ...
   ...
END;

Notice how easy it is to pass the collected figures to the function acid_test, which computes a financial ratio.

In SQL*Plus, suppose you define object type Passenger, as follows:

SQL> CREATE TYPE Passenger AS OBJECT(
  2  flight_no NUMBER(3),
  3  name      VARCHAR2(20),
  4  seat      CHAR(5));

Next, you define VARRAY type PassengertList, which stores Passenger objects:

SQL> CREATE TYPE PassengerList AS VARRAY(300) OF Passenger;

Finally, you create relational table flights, which has a column of type PassengerList, as follows:

SQL> CREATE TABLE flights (
  2  flight_no  NUMBER(3),
  3  gate       CHAR(5),
  4  departure  CHAR(15),
  5  arrival    CHAR(15),
  6  passengers PassengerList);

Each item in column passengers is a varray that will store the passenger list for a given flight.

Now, you can populate database table flights, as follows:

BEGIN
   INSERT INTO flights
      VALUES(109, '80', 'DFW 6:35PM', 'HOU 7:40PM',
         PassengerList(Passenger(109, 'Paula Trusdale', '13C'),
                       Passenger(109, 'Louis Jemenez', '22F'),
                       Passenger(109, 'Joseph Braun', '11B'), ...));
   INSERT INTO flights
      VALUES(114, '12B', 'SFO 9:45AM', 'LAX 12:10PM',
         PassengerList(Passenger(114, 'Earl Benton', '23A'),
                       Passenger(114, 'Alma Breckenridge', '10E'),
                       Passenger(114, 'Mary Rizutto', '11C'), ...));
   INSERT INTO flights
      VALUES(27, '34', 'JFK 7:05AM', 'MIA 9:55AM',
         PassengerList(Passenger(27, 'Raymond Kiley', '34D'),
                       Passenger(27, 'Beth Steinberg', '3A'),
                       Passenger(27, 'Jean Lafevre', '19C'), ...));

In the example below, you fetch rows from database table flights into record flight_info. That way, you can treat all the information about a flight, including its passenger list, as a logical unit.

DECLARE
   TYPE FlightRec IS RECORD (
      flight_no  NUMBER(3),
      gate       CHAR(5),
      departure  CHAR(15),
      arrival    CHAR(15),
      passengers PassengerList);
   flight_info FlightRec;
   CURSOR c1 IS SELECT * FROM flights;
BEGIN
   OPEN c1;
   LOOP
      FETCH c1 INTO flight_info;
      EXIT WHEN c1%NOTFOUND;
      FOR i IN 1..flight_info.passengers.LAST LOOP
         IF flight_info.passengers(i).seat = 'NA' THEN
            DBMS_OUTPUT.PUT_LINE(flight_info.passengers(i).name);
            RAISE seat_not_available;
         END IF;
         ...
      END LOOP;
   END LOOP;
   CLOSE c1;
EXCEPTION
   WHEN seat_not_available THEN
      ...
END;




Prev

Next
Oracle
Copyright © 1997 Oracle Corporation.

All Rights Reserved.

Library

Product

Contents

Index
