The Phobos Spectrometer Silicon Modules

Click on an image to enlarge.

WB01507_.gif (516 bytes)  Pictures of three different Phobos Spectrometer Module Types taken on September 11, 1998 and April,1999

(H. Pernegger)

Each Phobos Spectrometer Arm consists of 43 Silicon Pad Detector Modules, with a total of 700 readout chips and 170 silicon detectors which carry approximately 50000 individual pads. Phobos will use a total of 9 different module types in its spectrometer.

Phobmod1 copy.jpg (57658 bytes) Phobmod2 copy.jpg (51256 bytes)
Phobmod6 copy.jpg (49967 bytes) Phobm4t4 copy.jpg (40807 bytes)
Phobm5t4 copy.jpg (43449 bytes) Phobm5t5 copy.jpg (40841 bytes)
Phobm7t2 copy.jpg (65282 bytes) Phobm7t3 copy.jpg (55637 bytes)

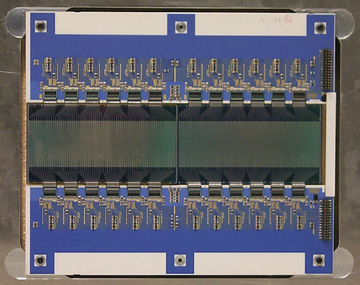

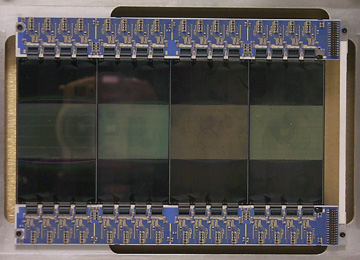

Module 1 Module 2

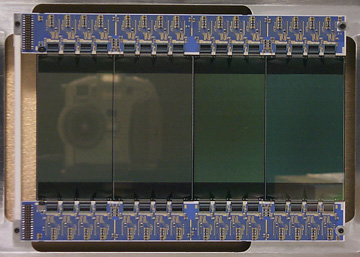

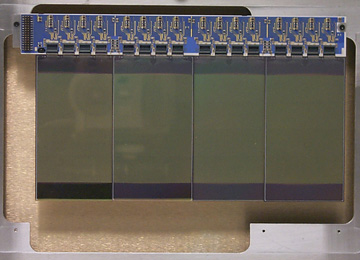

Module 6 Module 4 Type 4

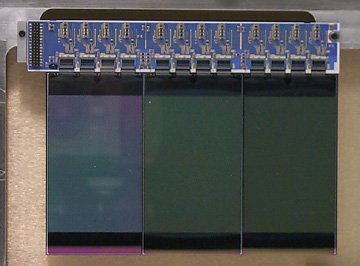

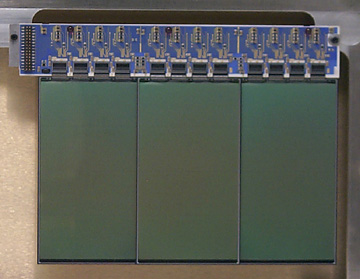

Module 5 Type 4 Module 5 Type 5

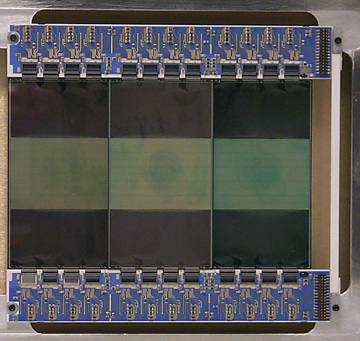

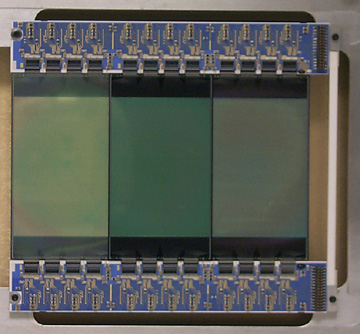

Module 7 Type 2 Module 7 Typ3
The different Module types: we assembled a total of 52 modules with 9 different geometrical layouts

A brief geometrical discription to some of the Modules:

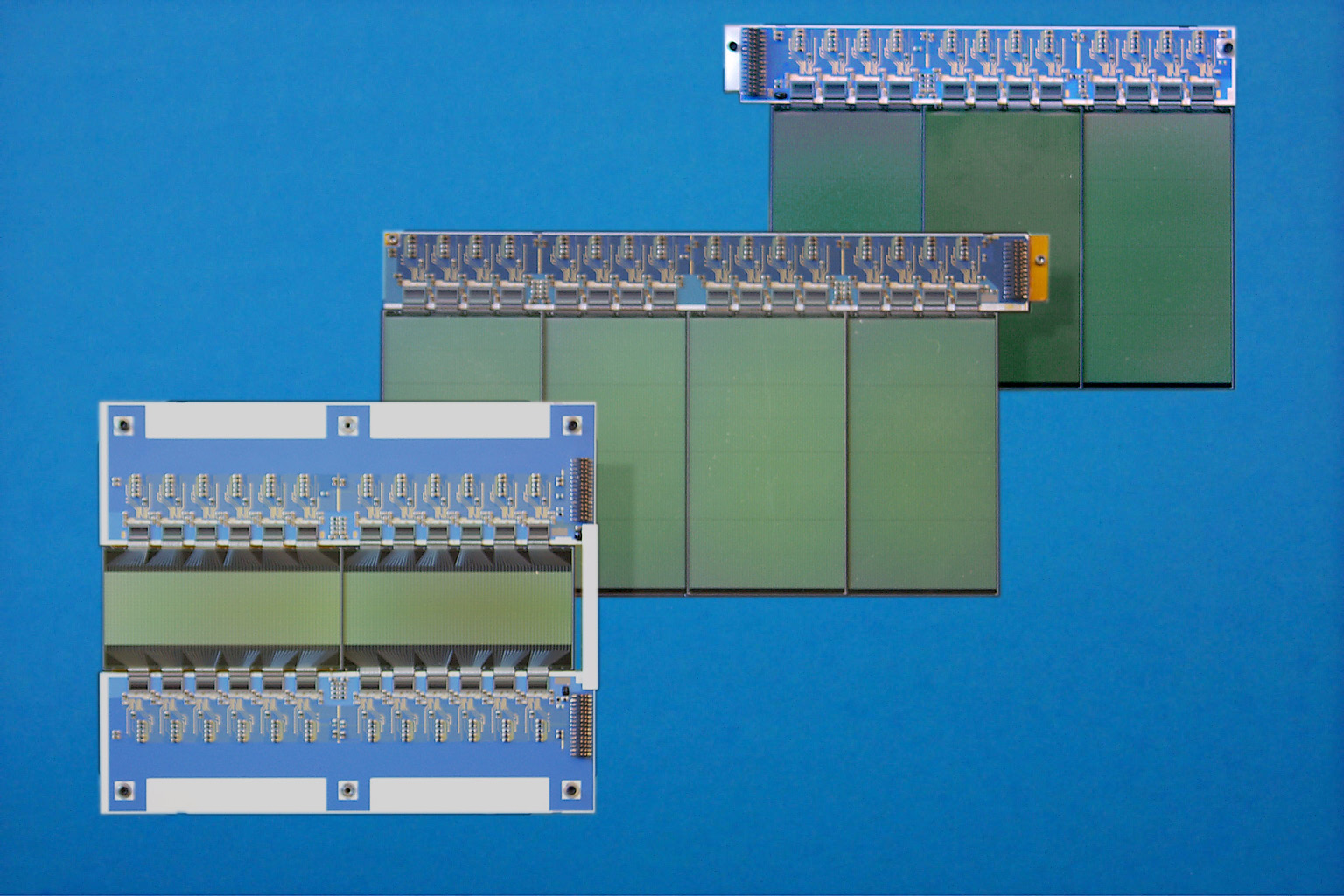

zoo1small.jpg (60741 bytes) The picture shows three different spectrometer module types. They are used in front and rear planes of the spectrometer

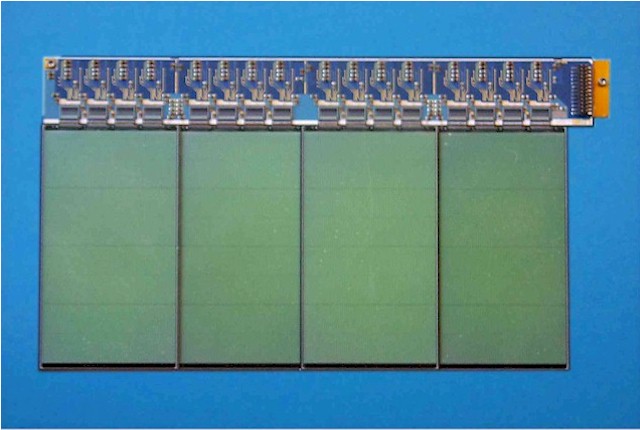

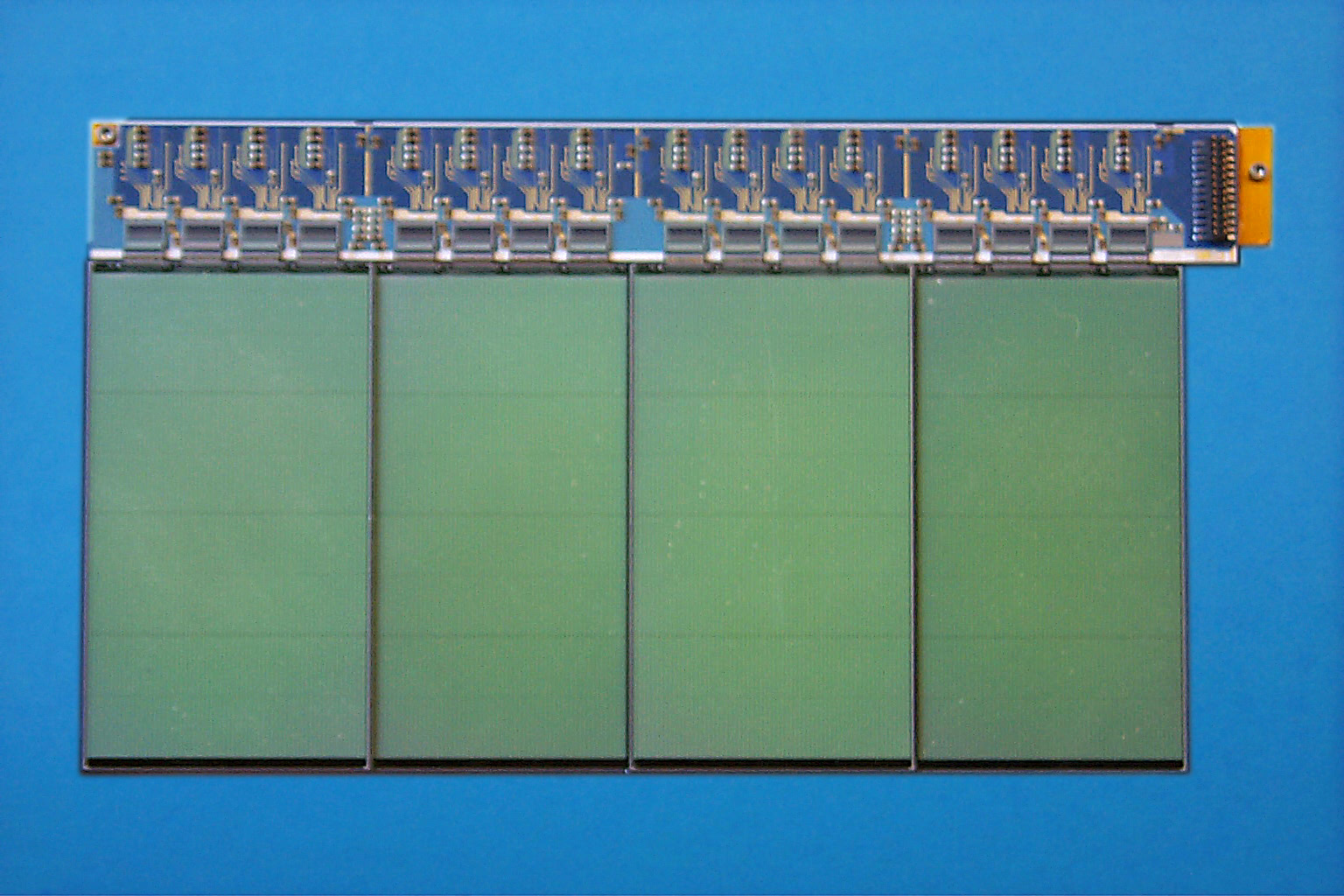

xmassmall.jpg (56976 bytes) This module is used in the rear planes of the spectrometer. Each so-called type-5 sensor has 256 pads distrubuted in 4 row and 64 columns. The pad size for this detector type is 0.667 x 19mm). The active area of this module (green coloured area) is approximately 160 by 80 mm2.

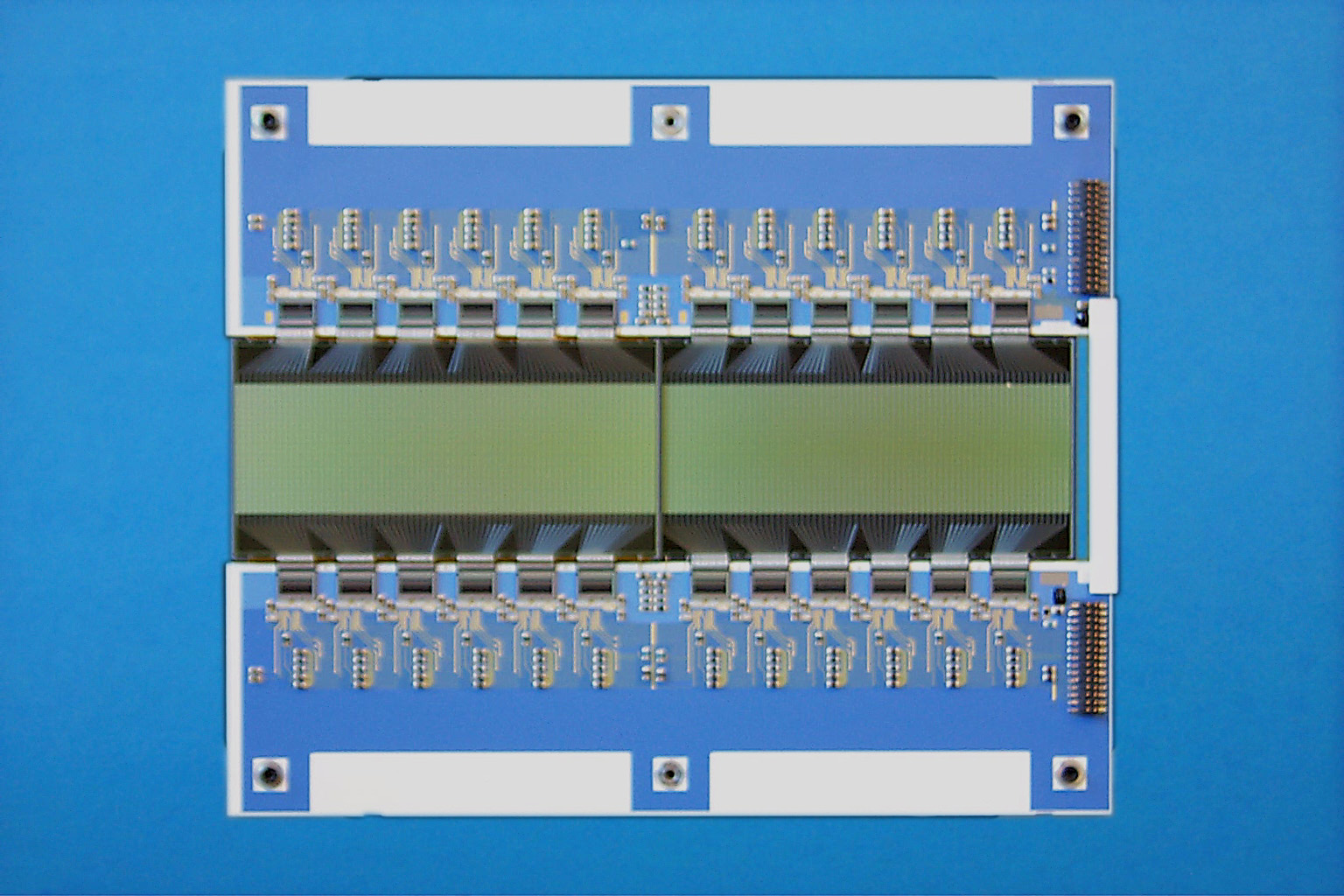

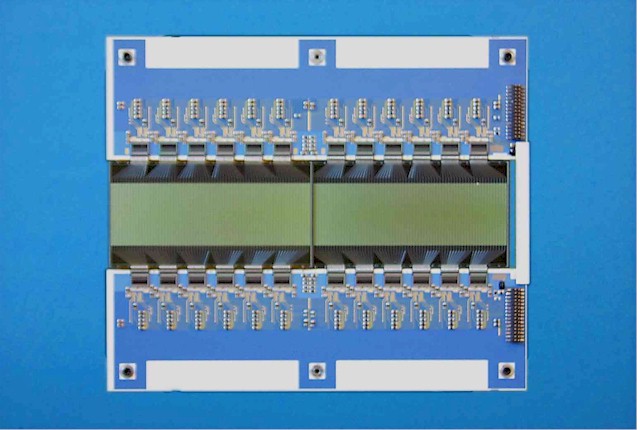

mod1small.jpg (63754 bytes) The Spectrometer Module 1 is used in the front four planes of the spectrometer. Each sensor (type-1) has 1540 pads in 22 rows and 70 columns. The pad size for a type 1 module is 1x1mm. The total active area of this module (green area) is 139 by 22 mm2.

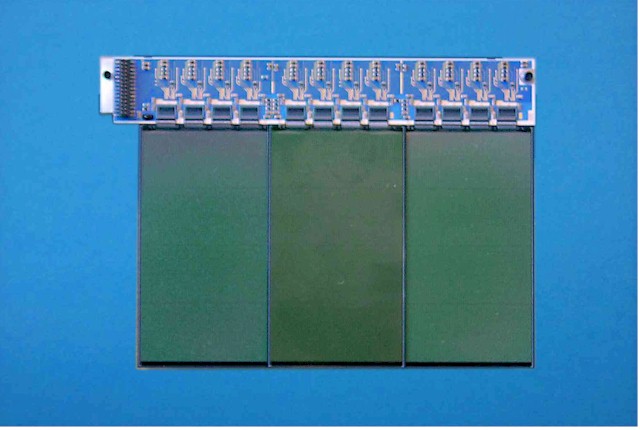

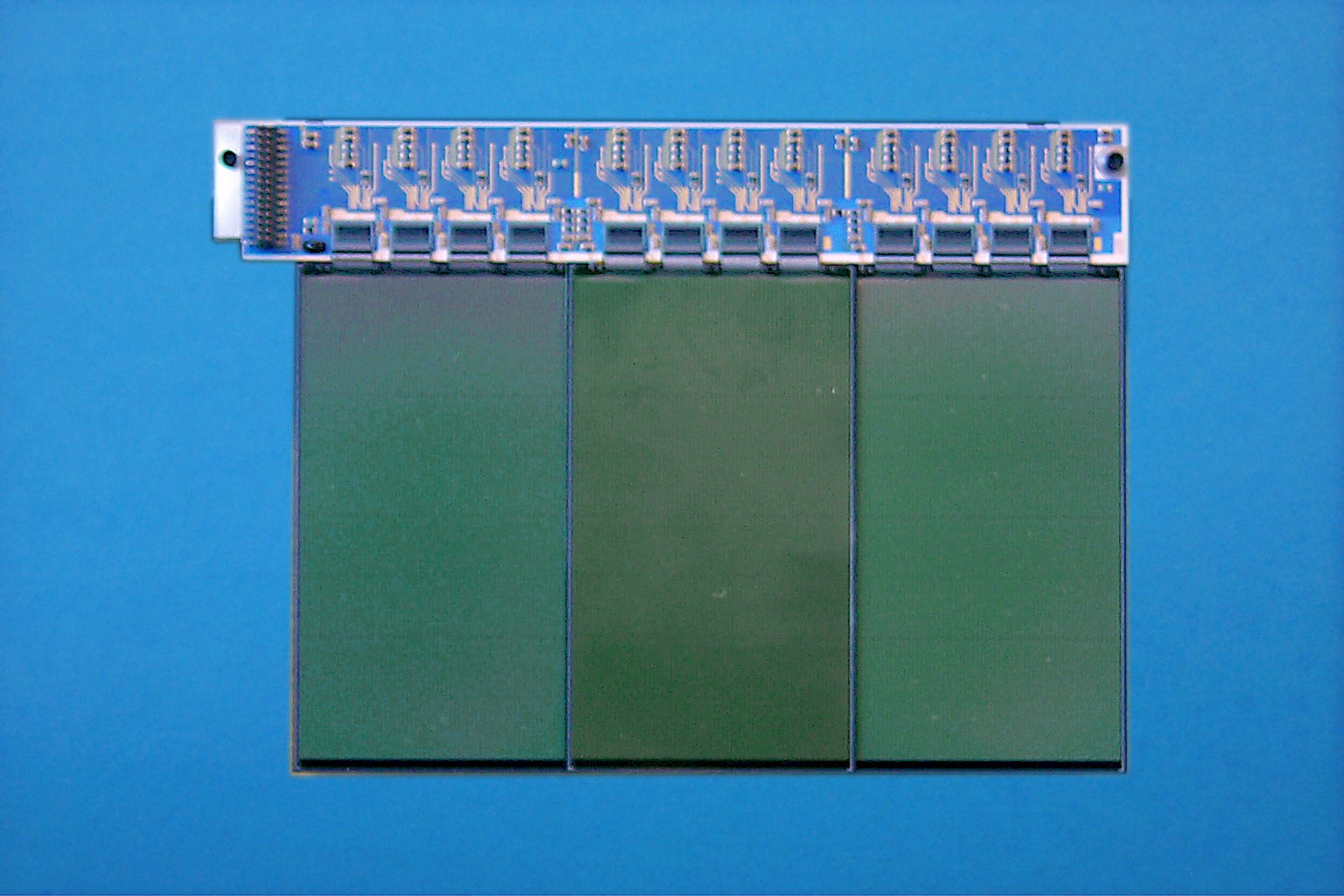

m5t5small.jpg (52832 bytes) The Spectrometer Module 5  is use in the last two planes of the spectrometer. Each of its sensors has 256 pads in 4 rows and 64 columns. The pad size is 0667 x 19mm. The total active area of this module is approximately 120 by 80 mm2.
