Pipeline Chip Test Fixture

Click on any small image to bring up the full-sized version.

The chip | Test fixture operation | Data format and input signal digitization

The chip:

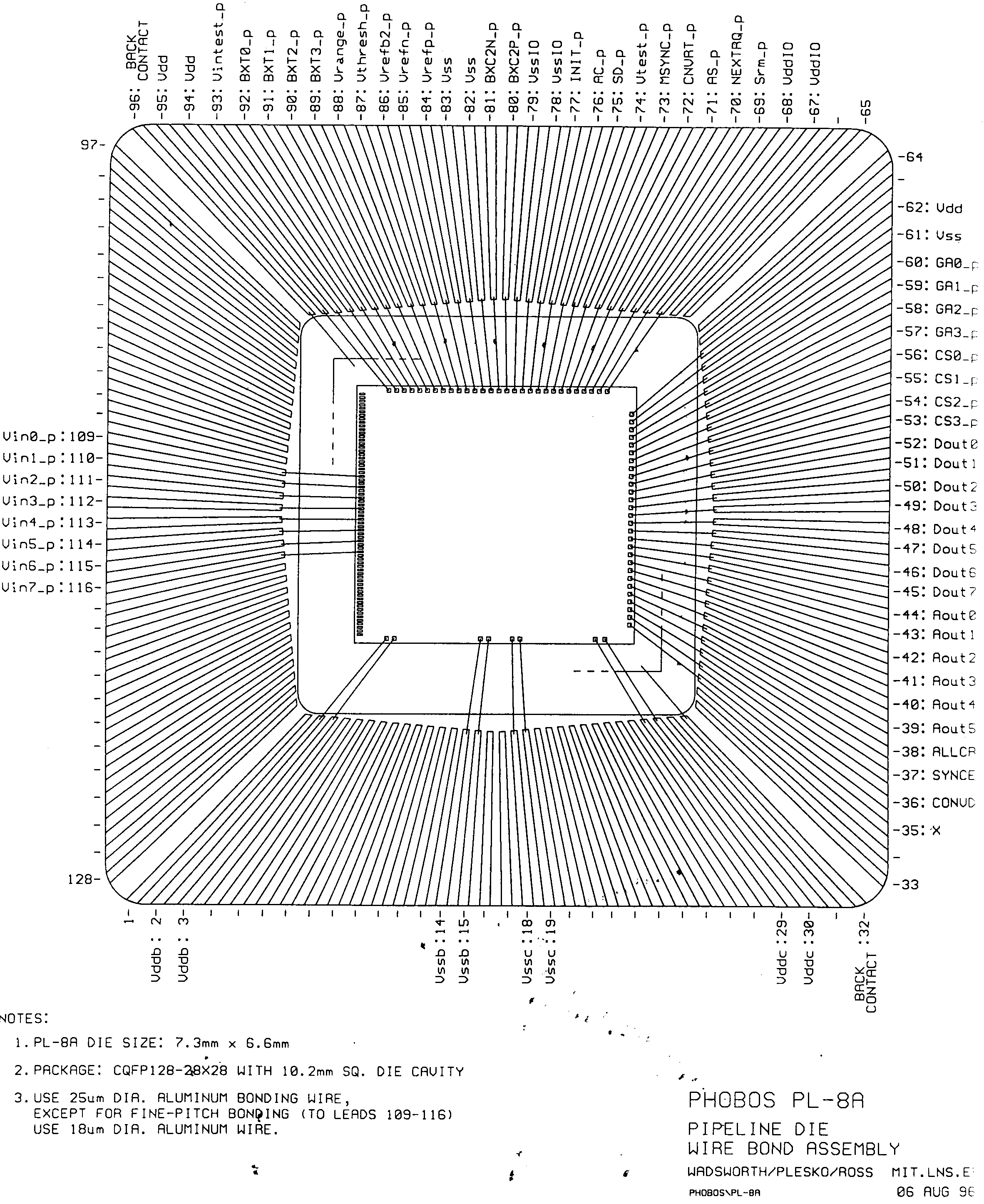

 Pipeline chip.

Glossary for chip diagram

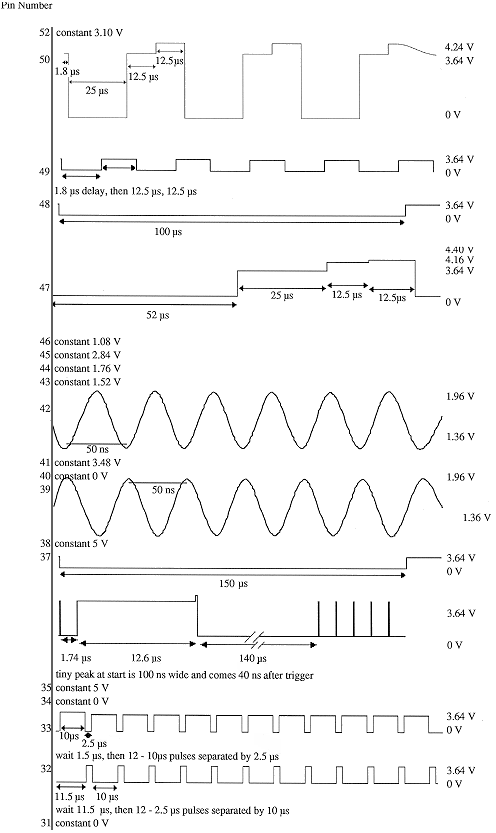

Timing of signals by pin number (GIF)

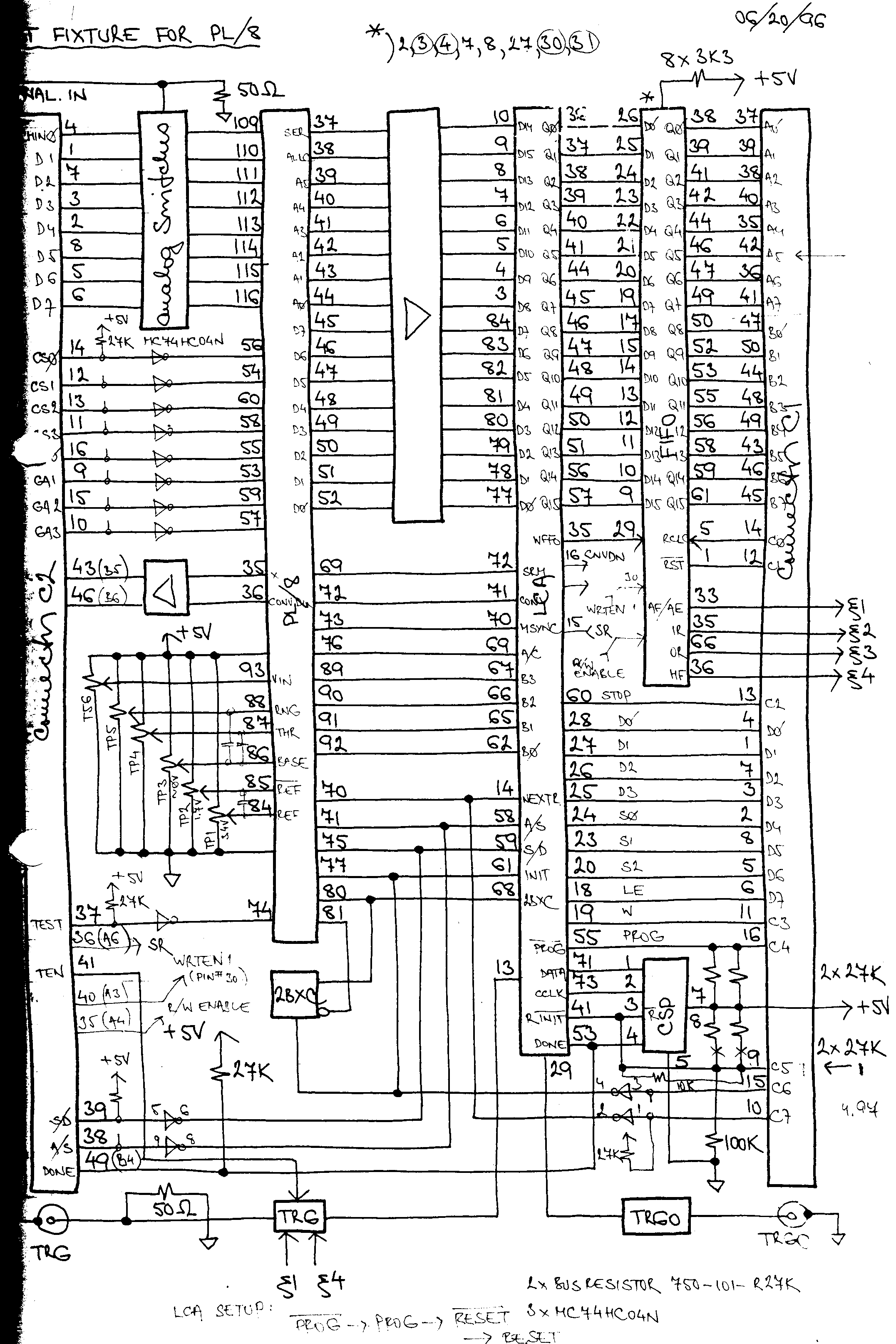

Diagram of operation of PL-8 test fixture: Diagram of operation of PL-8 test fixture


Line routing of PL-8 test fixture:

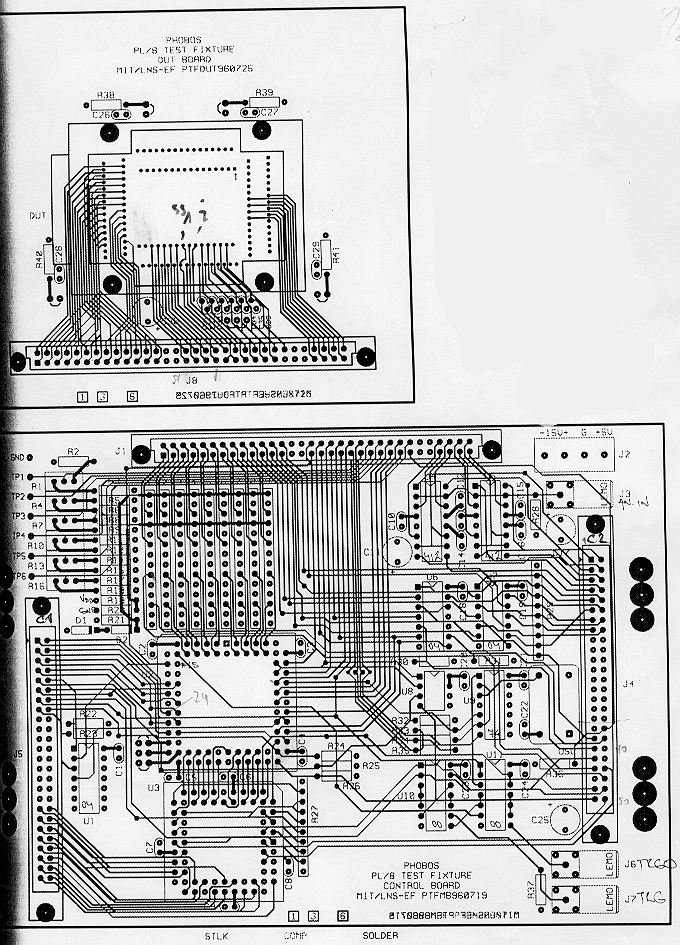

 Control board for PL-8 test fixture

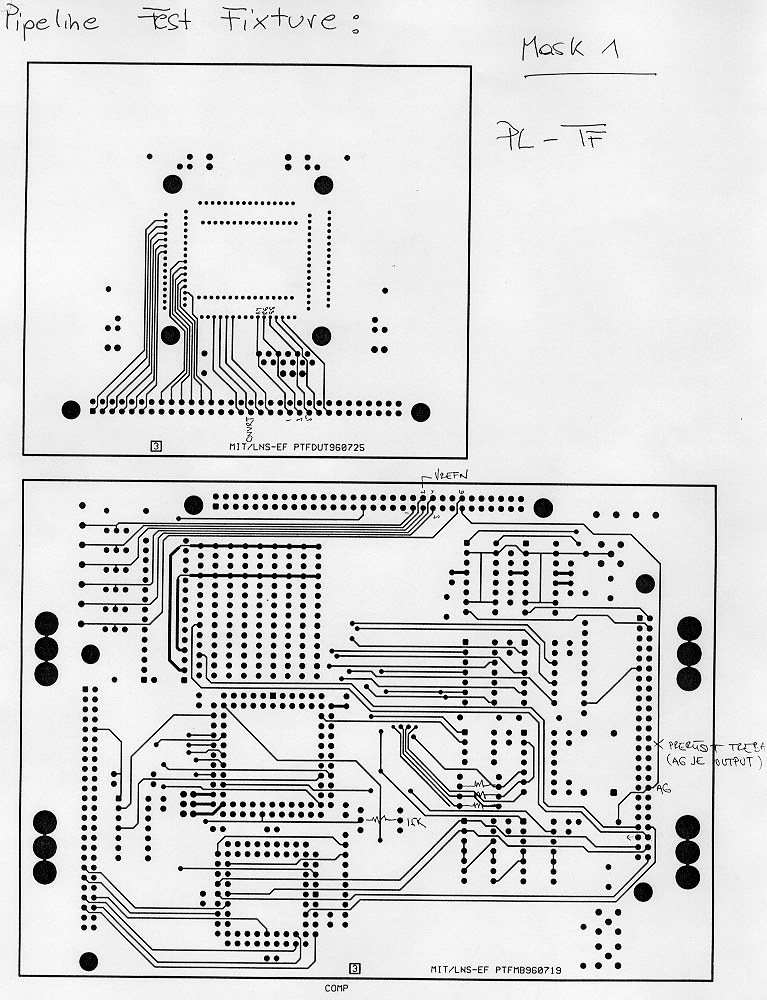

Control board, Mask 1

 The above image is also

represented as two seperate

masks for readability.

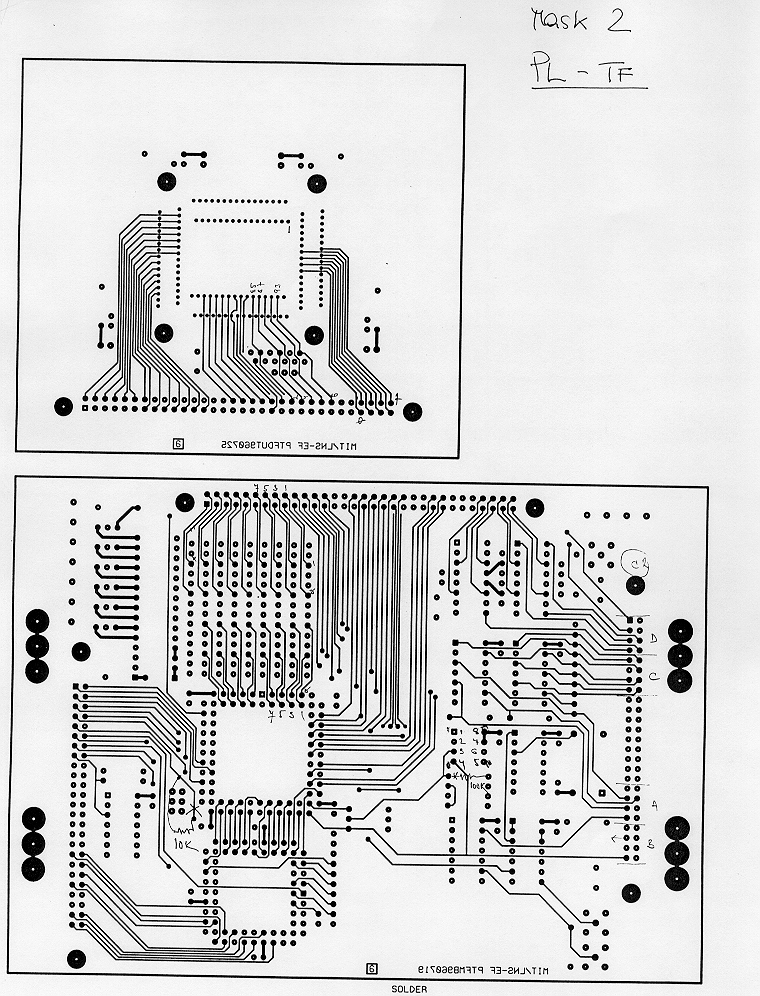

 Control board, mask 2.

Digitization of input pulse and data format:

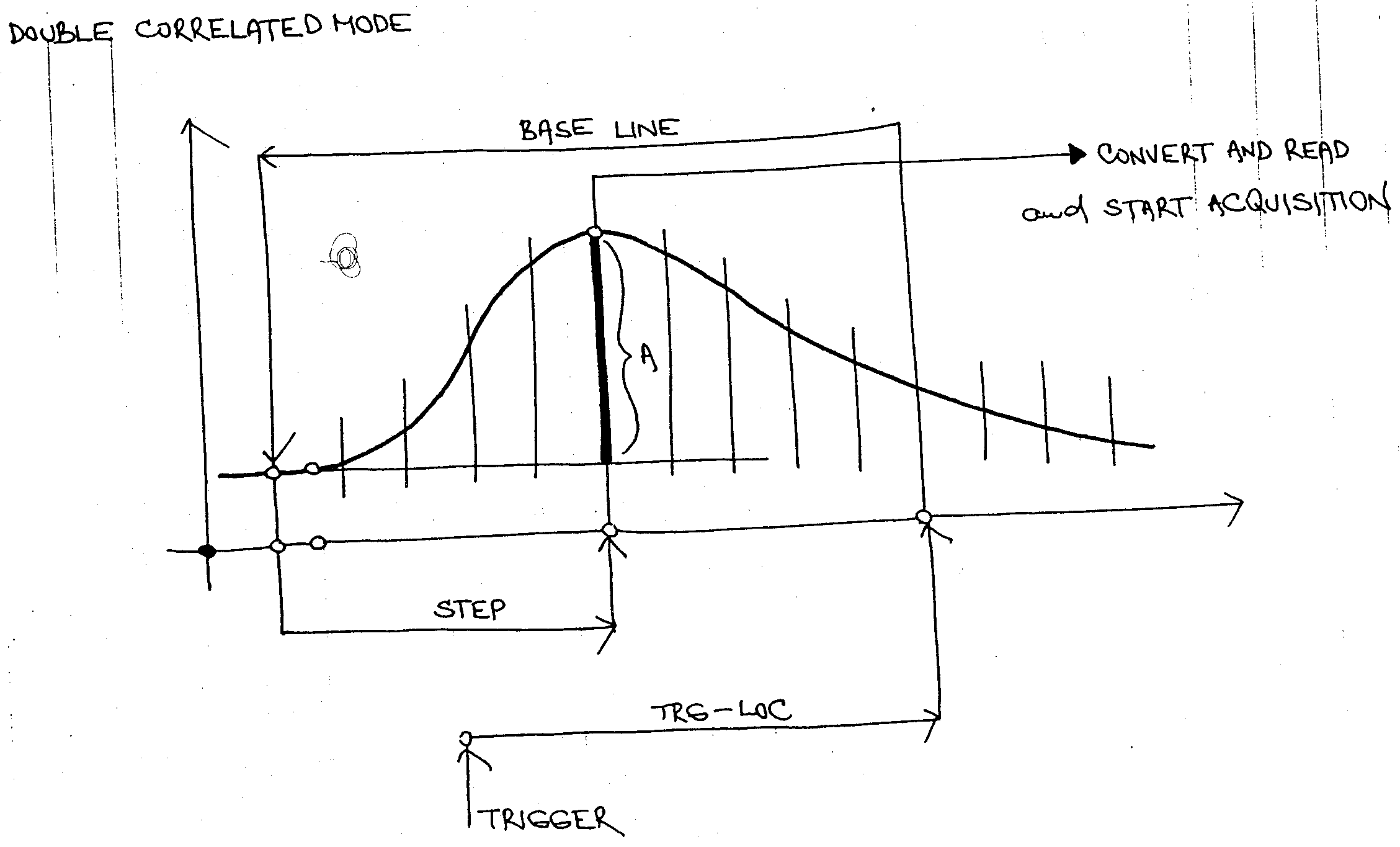

Time diagram of the input pulse digitization:

 Time diagram of digitization

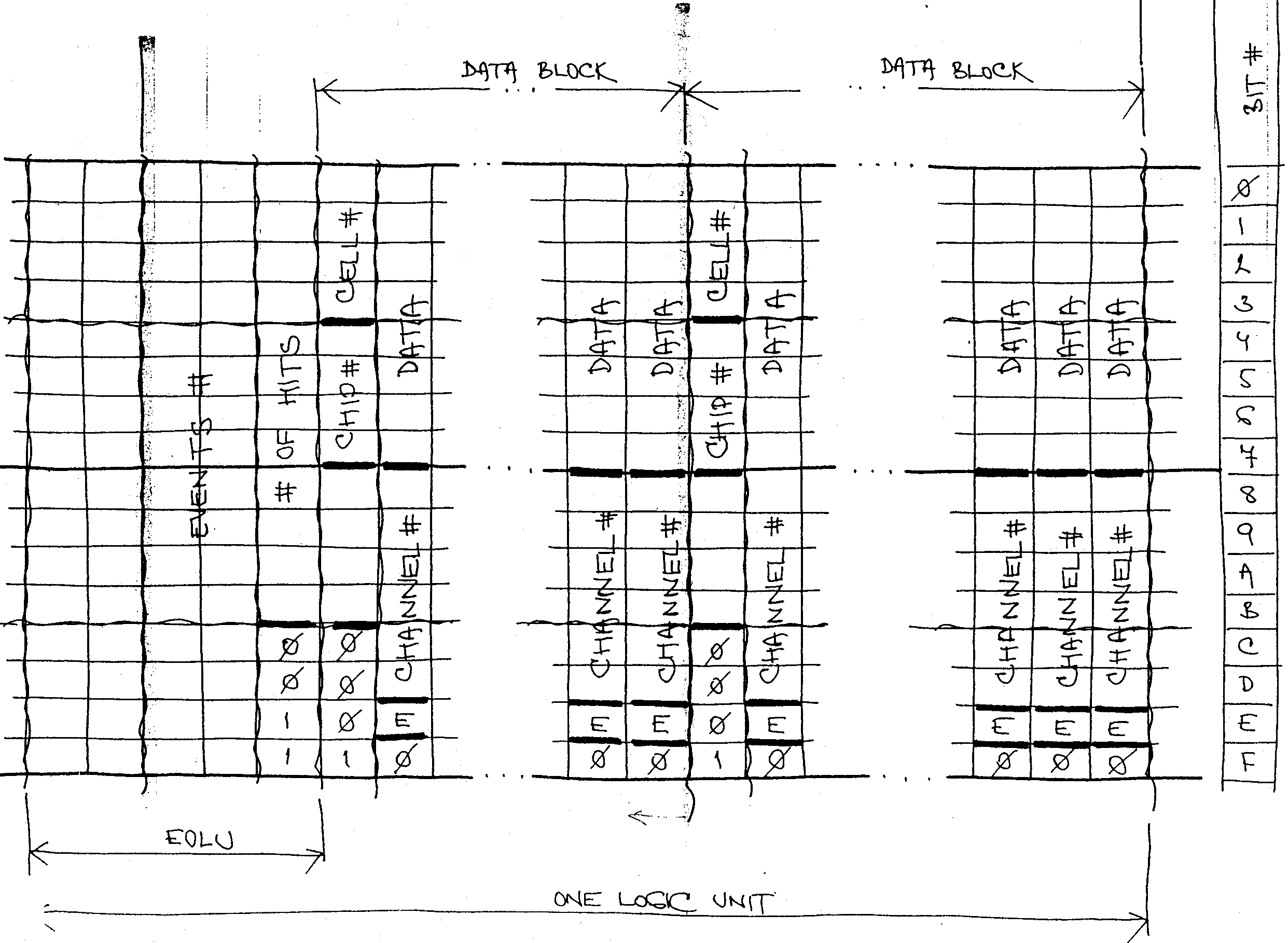

Data format:

 Data Format
