9/24/2002 4:01 PM. No FECs, no disks. Integrating FPDP



Made a loopback mode in the Collector. This is defined by LOOPBACK.

The Mercury works stable.

If the output rate is higher than 32 MB/s (330 Hz)  then messages appears:

[0]MasterMode3(): Event Builder queue is almost full, 7046f,7046e,0

If the output rate is close to 33 MB/s then system is saturated.

At this rate the Suspend on RINT0 is shining dimly.



There was difficult to debug phatdaq with fpdp. I disabled the fpdp support in slimdaqc and started separate program test_fpdplib which reads the fpdp interface. When I started first time it was only one complain in the collector that dqout was busy for more than 10 ms but after that it works fine at 30 MB/s or 300 Hz. The CPU on usp was 76% user busy. When I CtrlC on phatdaq the CPU dropped to 1% us, 25% sy, 76 % id.

Suspend on FPDP glimmers at ~ 5Hz. Suspend on RINT0



Prototype DAQ works at 300 Hz!



Prototype = Disks and FASTBUS are not connected, broken slimdaq.



No errors in FECs, that sounds suspicious.



Applied rate 10kHz, Accepted rate 300 Hz, 30 MB/s






9/25/2002 9:17 AM

Left system running since ~19:00,  usp crashed @ 23:32 after 7.5 MEv.

Sep 24 23:32:38 usp fpdp: fpdp_ioctl maximum transfer size exceeded



DValid


Single event. DValid = 1.28 ms @ 1.22 ms.
Event finished ~1.5 ms after DValid


Busy










Events at 10 kHz. DValid = 1.3 ms
The distance between DValid is 2.52 ms


Busy


DValid








9/25/2002 4:11 PM. Running slimdaq with FPDP support.

It works for several minutes and then goes high wired

Todo: debug the system for proper throttling. I.E stop slimdaq, the ROC should react nicely.

By the way performance is similar to yesterday’s.



9/26/2002 8::00 PM. Debugging pipelining.

The blocking still not working properly. If slimdaq is paused then collector slows down due to suspended output, output queue in mercury overflows, master sets back pressure and don’t acknowledge, watchdog in EMM complains that Si is not responding and initiates start/stops.



Running with writing

The maximum sustained rate is 20 MB/s, still have 40% idle CPU time. The writer queue in average is empty but spontaneously gets overflowed.



Example of good back pressure:

[0]Collector@24: Transfer 0x6f42 have not finished in 10 ms

[0]Collector@24: Receiver responded after 10 ms

[0]Collector@24: Transfer 0x6fc4 have not finished in 10 ms

[0]Collector@24: Receiver responded after 10 ms

[0]MasterMode3(): BackPressure. 0x70be.70a1

[0]MasterMode3(): Error, Ev# 1be did not change

[0]WorkerMod3(03): No events 0x1f

[0]MasterMode3(): Removing BackPressure and enabling EMM

[0]Collector@24: Events: 28681, rate: 10.03 MB/s, last: 0xbf

[0]Collector@24: Events: 29082, rate: 19.34 MB/s, last: 0x50



Example of bad back pressure:

[0]Collector@24: Events: 37236, rate: 19.34 MB/s, last: 0x2a

[0]Collector@24: Transfer 0x9193 have not finished in 10 ms

[0]MasterMode3(): BackPressure. 0x9268.924b

[0]MasterMode3(): Error, Ev# 168 did not change

[0]Collector@24: Receiver responded after 170 ms

[0]WorkerMod3(03): No events 0x9

[0]MasterMode3(): Removing BackPressure and enabling EMM

[0]MasterMode3(): Missed events 9269 EMM=16a

[0]WorkerMod3(03): Error! Event 9269 != dmu[0][1]=b015006a. Ajusting.

…

[0]MasterMode3(): Missed events 926a EMM=16b

[0]MasterMode3(): Event Builder queue is almost full, 9269,9269,0

[0]Collector@24: Error. Not finished row

0000:ff000210 10490000 b0ef0b05 00000000 4916000d 00000000 00000210 000000c0

0020:00000000 00000000 000120d8 00001018 0000a1e8 00000ae0 00001410 00000840

[0]MasterMode3(): Missed events 926b EMM=16d

[0]MasterMode3(): Event Builder queue is almost full, 926b,926b,0

[0]WorkerMod3(03): Error! Event 926c != dmu[0][1]=b015006d. Ajusting.

…

[0]MasterMode3(): Missed events 926c EMM=16e

[0]WorkerMod3(04): Error! Event 926c != dmu[0][1]=b00b006d. Ajusting.

[0]WorkerMod3(05): Error! Event 926c != dmu[0][1]=b008006d. Ajusting.

[0]MasterMode3(): Missed events 926d EMM=16f

[0]MasterMode3(): Event Builder queue is almost full, 926b,926b,0

[0]Collector@24: Events: 37300, rate: 3.09 MB/s, last: 0x6b

[0]Collector@24: Error. Not finished row

0000:ff000210 104c0000 b0ef0b05 00000000 4c160015 00000000 00000210 000000c0

0020:00000000 00000000 000120d8 00001018 0000a1e8 00000ae0 00001410 00000840

[0]MasterMode3(): Missed events 926e EMM=170

[0]MasterMode3(): Event Builder queue is almost full, 926e,926d,0

[0]MasterMode3(): Missed events 926f EMM=171

[0]MasterMode3(): Event Builder queue is almost full, 926f,926e,0

[0]MasterMode3(): Missed events 9270 EMM=172

…

[0]MasterMode3(): Event Builder queue is almost full, 927d,927d,0

[0]MasterMode3(): Missed events 927f EMM=181

[0]MasterMode3(): Event Builder queue is almost full, 927e,927e,0

[0]Collector@24: Transfer 0x91c4 have not finished in 10 ms

[0]MasterMode3(): Missed events 9280 EMM=182

[0]MasterMode3(): Event Builder queue is almost full, 9280,927e,0

…

[0]MasterMode3(): Missed events 929b EMM=19d

[0]MasterMode3(): Event Builder queue is almost full, 929b,927e,0

[0]MasterMode3(): BackPressure. 0x929b.927e

[0]MasterMode3(): Error, Ev# 19d did not change

[0]Collector@24: [9]ROUT is suspended by receiver

[0]WorkerMod3(03): No events 0x1c

[0]MasterMode3(): Error, Ev# 19d did not change

[0]Collector@24: [8]ROUT is suspended by receiver

[0]WorkerMod3(03): No events 0x1c

[0]MasterMode3(): Error, Ev# 19d did not change

[0]Collector@24: [7]ROUT is suspended by receiver

[0]WorkerMod3(03): No events 0x1c

[0]MasterMode3(): Stop Run received from EMM

[0]MasterMode3(): First event 0

[0]Collector@24: [6]ROUT is suspended by receiver

[0]ROCMain()    : status changed from 3 to 4

[0]MasterMode3(): Event Builder queue is almost full, 929c,927e,0

[0]WorkerMod3(03): No events 0x1c

[0]MasterMode3(): Exiting from Mode 3 at 0

[0]Collector@24: [5]ROUT is suspended by receiver

[0]WorkerMod3(06): Stop run detected.at 0

[0]WorkerMod3(07): Stop run detected.at 0





9/27/2002 12:45 PM

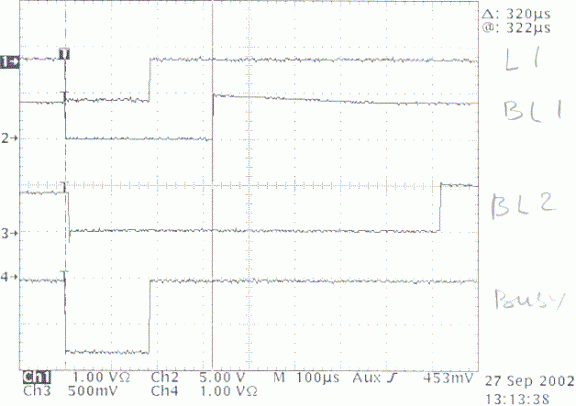

Talked to Piotr about L1 and L2. He does not know how the L2 acceptance window is organized in FEC. He suggest to apply shortened L1 not apply L2 and measure BusyL2.

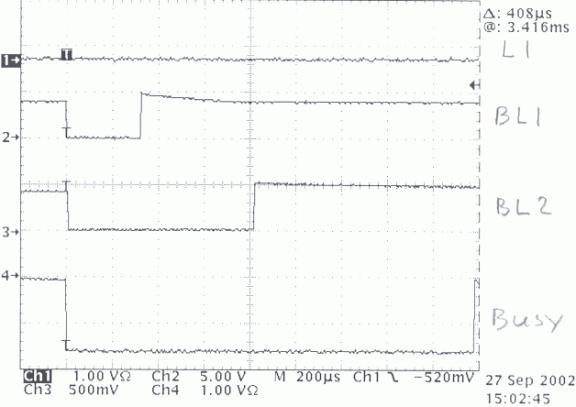

Fig. S2091313. Only DAQ Busy applied to the system. The system is unstable at 400+ Hz

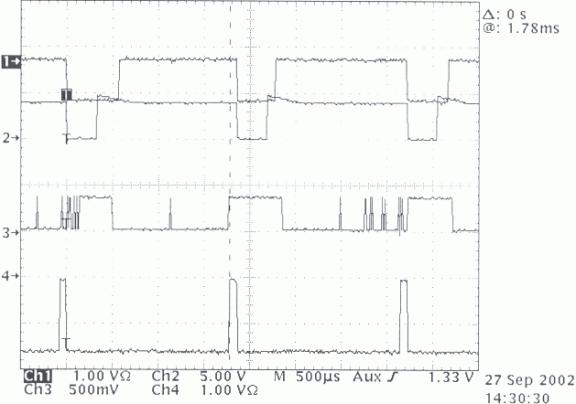

Fig. S209271502. All busy’s are applied too the system. The system is stable as Swiss watch.



FECs on, disk off

System can accept 340 Hz sustained, after that the FPDP begin suspending the system, the event fifo is empty. It can accept bursts at 500 Hz bursts during ~1 sec.

At 340 Hz CPU usage is 25% sy, 2% us, and 75% id!.



No FEC errors.

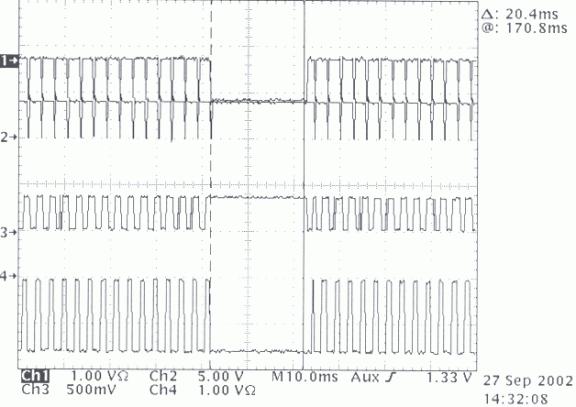

At 1/(2.66 ms) the output queue becomes full and accepted rate drops to 280 Hz



At higher rate FEC errors:

[0]MasterMode3(): Event Builder queue is almost full, 393d7,393c2,0

[0]MasterMode3(): Event Builder queue is almost full, 393ed,393d9,0

[0]WorkerMod3@11: Error! Ev 393fa, FEC11 Trail2!=0x80000000. 3110000,ffaaaa,84000000,b01200fa

[0]MasterMode3(): Event Builder queue is almost full, 393fd,393e8,0

[0]MasterMode3(): Event Builder queue is almost full, 3940a,393f4,0

[0]WorkerMod3@23: Error! Ev 3940f, FEC29 Trail2!=0x80000000. 3290000,ffaaaa,84000000,f80a000f

[0]WorkerMod3@13: Error! Ev 39411, FEC9 Trail2!=0x80000000. 3090000,ffaaaa,84000000,b00a0011

[0]MasterMode3(): Event Builder queue is almost full, 39416,39400,0

[0]WorkerMod3@22: Error! Ev 39418, FEC18 Trail2!=0x80000000. 3180000,baaaa,8400000

[0]WorkerMod3@22: Error! Ev 39418, FEC18 Trail2!=0x80000000. 3180000,baaaa,84000000,b8190018

[0]WorkerMod3@22: Error! Ev 3941b, FEC18 Trail2!=0x80000000. 3180000,baaaa,84000000,b819001b

[0]MasterMode3(): Event Builder queue is almost full, 39421,3940b,0

[0]MasterMode3(): Event Builder queue is almost full, 3942d,39416,0

[0]MasterMode3(): Event Builder queue is almost full, 39438,39422,0

[0]MasterMode3(): Event Builder queue is almost full, 39443,3942d,0

[0]MasterMode3(): Event Builder queue is almost full, 3944f,39438,0

[0]WorkerMod3@05: Error! Ev 39454, FECb Trail2!=0x80000000. 30b0000,3faaaa,84000000,b00c0054

[0]WorkerMod3@17: Error! Ev 3945c, FEC25 Trail2!=0x80000000. 3250000,fcaaaa,84000000,b806005c

[0]MasterMode3(): Event Builder queue is almost full, 3945a,39444,0

[0]WorkerMod3@17: Error! Ev 39466, FEC25 Trail2!=0x80000000. 3250000,fcaaaa,84000000,b8060066

[0]MasterMode3(): Event Builder queue is almost full, 39468,39456,0

[0]WorkerMod3@09: Error! Ev 39470, FECa Trail2!=0x80000000. 30a0000,3faaaa,84000000,b0040070

[0]MasterMode3(): Event Builder queue is almost full, 39473,3945d,0

[0]MasterMode3(): Event Builder queue is almost full, 39480,3946b,0

[0]WorkerMod3@08: Error! Ev 3948e, FEC4 Trail2!=0x80000000. 3040000,ffaaaa,84000000,b005008e

[0]MasterMode3(): Event Builder queue is almost full, 3948d,39476,0

[0]MasterMode3(): Event Builder queue is almost full, 39497,39481,0

[0]MasterMode3(): Event Builder queue is almost full, 394a2,3948c,0

[0]MasterMode3(): Event Builder queue is almost full, 394ad,39496,0

[0]WorkerMod3@22: Error! Ev 394b1, FEC18 Trail2!=0x80000000. 3180000,baaaa,84000000,b81900b1

[0]WorkerMod3@05: Error! Ev 394b2, FECb Trail2!=0x80000000. 30b0000,3faaaa,84000000,b00c00b2

[0]WorkerMod3@12: Error! Ev 394b4, FEC1 Trail2!=0x80000000. 3010200,ffaaaa,84000[0]WorkerMod3@06: Error! Ev 394b4, FECf Trail2!=0x80000000. 30f0000,3faaaa,84000000,b01000b4

000,b00200b4

[0]WorkerMod3@06: Error! Ev 394b4, FEC12 Trail2!=0x80000000. 3120000,ffaaaa,84000000,b01300b4

[0]WorkerMod3@13: Error! Ev 394b4, FEC9 Trail2!=0x80000000. 3090200,ffaaaa,84000000,b00a00b4

[0]WorkerMod3@06: Error! Ev 394b5, FECf Trail2!=0x80000000. 30f0000,3faaaa,84000000,b01000b5

[0]WorkerMod3@10: Error! Ev 394b4, FECd Trail2!=0x80000000. 30d0000,3faaaa,84000000,b00e00b4

[0]WorkerMod3@06: Error! Ev 394b5, FEC12 Trail2!=0x80000000. 3120000,ffaaaa,84000000,b01300b5

[0]WorkerMod3@10: Error! Ev 394b4, FECc Trail2!=0x80000000. 30c0000,ffaaaa,84000[0]WorkerMod3@06: Error! Event 394b6, shift in FEC[0]

000,b00d00b4

[0]WorkerMod3@06: Trailer: 3faaaa,80000000,b01000b6,24b0200

[0]WorkerMod3@11: Error! Ev 394b4, FEC10 Trail2!=0x80000000. 3100000,3faaaa,84000000,b01100b4

[0]WorkerMod3@11: Error! Ev 394b4, FEC11 Trail2!=0x80000000. 3110000,ffaaaa,8400[0]WorkerMod3@10: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@10: Trailer: 3faaaa,80000000,b00e00b6,1910170

0000,b01200b4

[0]WorkerMod3@10: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@06: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@10: Trailer: ffaaaa,80000000,b00d00b6,1e70225

[0]WorkerMod3@06: Trailer: ffaaaa,80000000,b01300b6,f000d8

[0]WorkerMod3@07: Error! Ev 394b4, FEC5 Trail2!=0x80000000. 3050000,ffaaaa,84000000,b00600b4

[0]WorkerMod3@08: Error! Ev 394b4, FEC6 Trail2!=0x80000000. 3060000,ffaaaa,84000000,b00700b4

[0]WorkerMod3@07: Error! Ev 394b4, FEC2 Trail2!=0x80000000. 3020000,ffaaaa,84000000,b00300b4

[0]WorkerMod3@08: Error! Ev 394b4, FEC4 Trail2!=0x80000000. 3040000,ffaaaa,84000000,b00500b4

[0]WorkerMod3@07: Error! Ev 394b5, FEC5 Trail2!=0x80000000. 3050000,ffaaaa,84000000,b00600b5

[0]WorkerMod3@09: Error! Ev 394b4, FECe Trail2!=0x80000000. 30e0000,ffaaaa,84000[0]WorkerMod3@07: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@07: Trailer: ffaaaa,80000000,b00600b6,17200ef

000,b00f00b4

[0]WorkerMod3@09: Error! Ev 394b4, FECa Trail2!=0x80000000. 30a0000,3faaaa,84000[0]WorkerMod3@07: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@07: Trailer: ffaaaa,80000000,b00300b6,14601d6

000,b00400b4

[0]WorkerMod3@03: Error! Ev 394b5, FEC16 Trail2!=0x80000000. 3160000,ffaaaa,84000000,b01500b5

[0]WorkerMod3@09: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@09: Trailer: ffaaaa,80000000,b00f00b6,1630167

[0]WorkerMod3@03: Error! Ev 394b5, FEC13 Trail2!=0x80000000. 3130000,ffaaaa,84000000,b01400b5

[0]WorkerMod3@09: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@09: Trailer: 3faaaa,80000000,b00400b6,2000279

[0]WorkerMod3@03: Error! Ev 394b5, FEC19 Trail2!=0x80000000. 3190000,bbaaaa,8400[0]WorkerMod3@04: Error! Ev 394b5, FEC3 Trail2!=0x80000000. 3030000,ffaaaa,84000000,b00b00b5

0000,b01a00b5

[0]WorkerMod3@04: Error! Ev 394b5, FEC8 Trail2!=0x80000000. 3080000,ffaaaa,84000000,b00900b5

[0]WorkerMod3@05: Error! Ev 394b4, FECb Trail2!=0x80000000. 30b0000,3faaaa,84000000,b00c00b4

[0]WorkerMod3@04: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@04: Trailer: ffaaaa,80000000,b00b00b6,15e0177

[0]WorkerMod3@04: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@12: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@12: Trailer: ffaaaa,80000000,b00200b6,1120162

[0]WorkerMod3@04: Trailer: ffaaaa,80000000,b00900b6,160012a

[0]WorkerMod3@05: Error! Ev 394b5, FEC7 Trail2!=0x80000000. 3070000,3faaaa,84000000,b00800b5

[0]WorkerMod3@11: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@11: Trailer: 3faaaa,80000000,b01100b6,2980273

[0]WorkerMod3@05: Error! Ev 394b5, FECb Trail2!=0x80000000. 30b0000,3faaaa,84000000,b00c00b5

[0]WorkerMod3@11: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@11: Trailer: ffaaaa,80000000,b01200b6,48203ca

[0]WorkerMod3@05: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@05: Trailer: 3faaaa,80000000,b00800b6,18b01b7

[0]WorkerMod3@08: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@08: Trailer: ffaaaa,80000000,b00700b6,1c100f4

[0]WorkerMod3@05: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@05: Trailer: 3faaaa,80000000,b00c00b6,22a01ba

[0]WorkerMod3@08: Error! Event 394b6, shift in FEC[1]

[0]WorkerMod3@08: Trailer: ffaaaa,80000000,b00500b6,16b01af

[0]MasterMode3(): RINT0 timeout 20002us for transfer 0x394b6.0x394b6

[0]ResetHardware: Resetting

[0]WorkerMod3@03: Error! Ev 394b5, FEC1a Trail2!=0x80000000. 31a0000,baaaa,84000000,b01b00b5

[0]WorkerMod3@03: Error! Event 394b6, shift in FEC[2]

[0]WorkerMod3@03: Trailer: bbaaaa,80800001,b01a00b6,125610ff

[0]WorkerMod3@03: Error! Event 394b6, shift in FEC[3]

[0]WorkerMod3@03: Trailer: baaaa,80000000,b01b00b6,1c7016a

[4]ResetHardware: --FAILED--

Status of RINT[0]DX_QUEUED: a transfer is ongoing



[0]MasterMode3(): Missed events 394b7 EMM=1b8

[0]WorkerMod3@13: Error! Event 394b6, shift in FEC[0]

[0]WorkerMod3@13: Trailer: 2210269,26c02d5,30c0261,2530217

[0]WorkerMod3@03: Error! Event 394b7 != dmu[0][1]=b01400b8. Ajusting.

[0]WorkerMod3@15: Error! Event 394b7 != dmu[0][1]=b80300b8. Ajusting.

[0]WorkerMod3@03: Error! Event 394b8, shift in FEC[1]

[0]WorkerMod3@14: Error! Event 394b7 != dmu[0][1]=b81000b8. Ajusting.

[0]WorkerMod3@03: Trailer: 61da61d9,61d861d7,61da61d9,61d861da

[0]WorkerMod3@03: Error! Event 394b8, shift in FEC[2]

[0]WorkerMod3@06: Error! Event 394b7, shift in FEC[0]

…



[0]: EBQueue: 0x20.3835f.3834c.0.4b000

[0]:  Row 0=40.16. 0.16.0

[0]:  Row 1=41.16. 0.16.0

[0]:  Row 2=42.16. 0.16.0

[0]:  Row 3=43.16. 0.16.0

[0]:  Row 4=44.16. 0.16.0

[0]:  Row 5=45.16. 0.16.0

[0]:  Row 6=46.16. 0.15.0

[0]:  Row 7=47.16. 0.15.0

[0]:  Row 8=48.16. 0.15.0

[0]:  Row 9=49.16. 0.15.0

[0]:  Row a=4a.16. 0.15.0

[0]:  Row b=4b.16. 0.15.0

[0]:  Row c=4c.16.16.15.18910

[0]:  Row d=4d.16.16.15.18910

[0]:  Row e=4e.16.16.15.18910

[0]:  Row f=4f.16.16.15.18910

[0]:  Row10=50.16.16.15.18910

[0]:  Row11=51.16.16.15.18910

[0]:  Row12=52.16.16.15.18910

[0]:  Row13=53.16.16.15.18910

[0]:  Row14=54.16.16.15.18910

[0]:  Row15=55.16.16.15.18910

[0]:  Row16=56.16.16.15.18910

[0]:  Row17=57.16.16.15.18910

[0]:  Row18=58.16.16.15.18910

[0]:  Row19=59.16.16.15.18910

[0]:  Row1a=5a.16.16.15.18910

[0]:  Row1b=5b.16.16.15.18910

[0]:  Row1c=5c.16.16.15.18910

[0]:  Row1d=5d.16.16.15.18910

[0]:  Row1e=5e.16.16.15.18910

[0]:  Row1f=5f.16.16. d.18910

[0]: CE00 id=00 mode=0 stat=0 err=   0,       0 ev=0 l=0

[0]: CE01 id=00 mode=0 stat=3 err=   0,       0 ev=0 l=0

[0]: CE02 id=00 mode=0 stat=3 err=   0,       0 ev=38362 l=150

[0]: CE03 id=00 mode=3 stat=3 err=   0,       0 ev=38362 l=1140

[0]: CE04 id=01 mode=3 stat=3 err=   b,       0 ev=38361 l=1128

[0]: CE05 id=02 mode=3 stat=3 err=  11,       0 ev=38361 l=1320

[0]: CE06 id=03 mode=3 stat=3 err=   0,       0 ev=38361 l=1320

[0]: CE07 id=04 mode=3 stat=3 err=   0,       0 ev=38361 l=13c8

[0]: CE08 id=05 mode=3 stat=3 err=   1,       0 ev=38361 l=1278

[0]: CE09 id=06 mode=3 stat=3 err=   0,       0 ev=38361 l=13c8

[0]: CE0a id=07 mode=3 stat=3 err=   2,       0 ev=38361 l=13c8

[0]: CE0b id=08 mode=3 stat=3 err=   2,       0 ev=38361 l=1320

[0]: CE0c id=09 mode=3 stat=3 err=   0,       0 ev=38361 l=1018

[0]: CE0d id=0a mode=3 stat=3 err=   0,       0 ev=38360 l=1018

[0]: CE0e id=0b mode=3 stat=3 err=   0,       0 ev=38362 l=1428

[0]: CE0f id=0c mode=3 stat=3 err=  19,       0 ev=38362 l=1320

[0]: CE10 id=0d mode=3 stat=3 err=   8,       0 ev=38362 l=1320

[0]: CE11 id=0e mode=3 stat=3 err=   0,       0 ev=38362 l=1320

[0]: CE12 id=0f mode=3 stat=3 err=   0,       0 ev=38362 l=13c8

[0]: CE13 id=10 mode=3 stat=3 err=   0,       0 ev=38362 l=1320

[0]: CE14 id=11 mode=3 stat=3 err=   2,       0 ev=38361 l=1320

[0]: CE15 id=12 mode=3 stat=3 err=   0,       0 ev=38361 l=13c8

[0]: CE16 id=13 mode=3 stat=3 err=   0,       0 ev=38361 l=1318

[0]: CE17 id=14 mode=3 stat=3 err=   1,       0 ev=38362 l=1018



BackPressure works:

 [0]MasterMode3(): BackPressure. 0x122ea.122cd

[0]MasterMode3(): Removing BackPressure and enabling EMM

[0]Collector@24: Events: 0x123a2, rate: 26.87 MB/s, last: 0x9b

[0]MasterMode3(): BackPressure. 0x12667.1264a

[0]MasterMode3(): Removing BackPressure and enabling EMM

[0]MasterMode3(): BackPressure. 0x12668.1264b

[0]MasterMode3(): Removing BackPressure and enabling EMM



Pauses

After applying all busy (L1, L2, MDC) the system works as a Swiss watch. Applied 500 Hz received 300 Hz. On the picture 1432 I see random pauses in data taking which lasts for ~ 20 ms (Solaris ticks?).

Note of 10/03/02. The 20 ms pause was in the code. After removing it the receiving rate increased only slightly – to 330 Hz.









Missing L1:

0]WorkerMod3@03: No events 0x8

[0]WorkerMod3@03: No events 0x8

[0]Collector@24: Events: 0x27, rate: 0.03 MB/s, last: 0xe8

[0]MasterMode3(): Event Builder queue is almost full, f6,f5,0

[0]WorkerMod3@13: Error! Ev 104, FEC9 Trail2!=0x80000000. 3090000,ffaaaa,84000000,b00a0004

[0]WorkerMod3@03: No events 0x17

[0]WorkerMod3@03: No events 0x17



Writing to disk with real data processing

27 MB/s, 100 Hz, event size 0x47000 = 290kB



Summary:

Today we ran the new DAQ with FECs under following conditions:

Only Silicon hardware have been tested.

The disk interface was not optimal. Due to a missing SCSI cable it runs only at 40 MB/s (this cable should be delivered soon).







10/7/2002 4:48 PM Optimization of the disk writing.
