Resetting Current Trips on Plasmon

• When one of the High Voltage channels trip due to a high current for any of the detectors monitored by the HV Controls vi on Plasmon, an alarm will sound and the status of that channel will indicate a current trip by displaying an orange field.

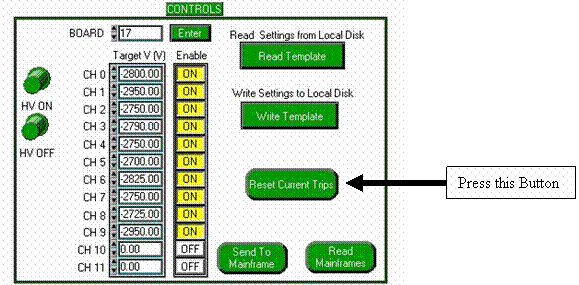

• If this happens for any number of channels, press the Reset Current Trips button on the HV Controls vi.

• The vi will look at each channel, determine if it tripped due to an excessive current, and send a disable command then an enable command to reset the channel.

• If this procedure does not work, call an expert.
