Trigger Counters running
- Table of geometric layout of inelasticity counters.
- Two start trigger and timing counters has been added. One is a 3 slat
counters in front of D1. The pictures here give an idea about the layout.

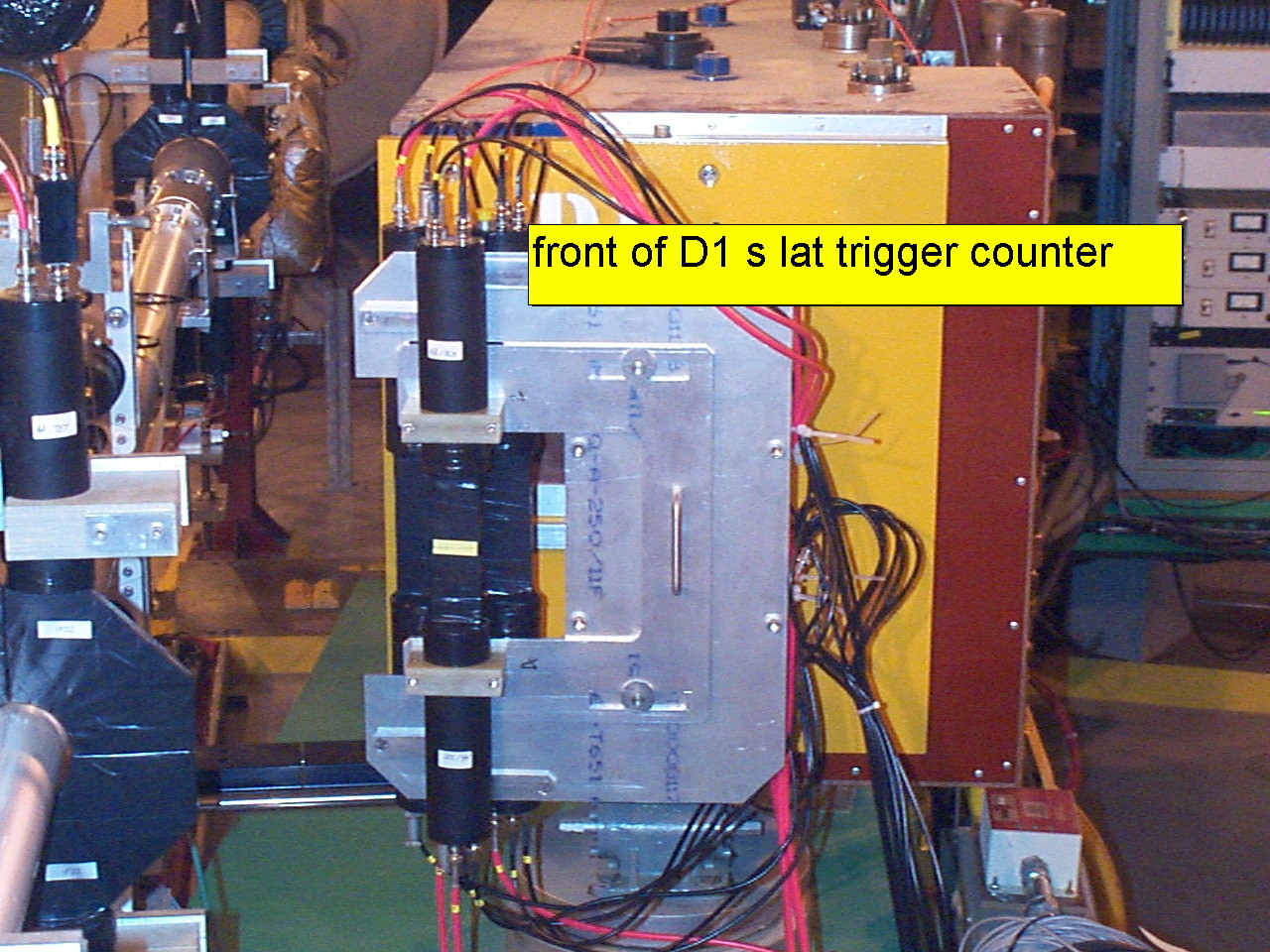

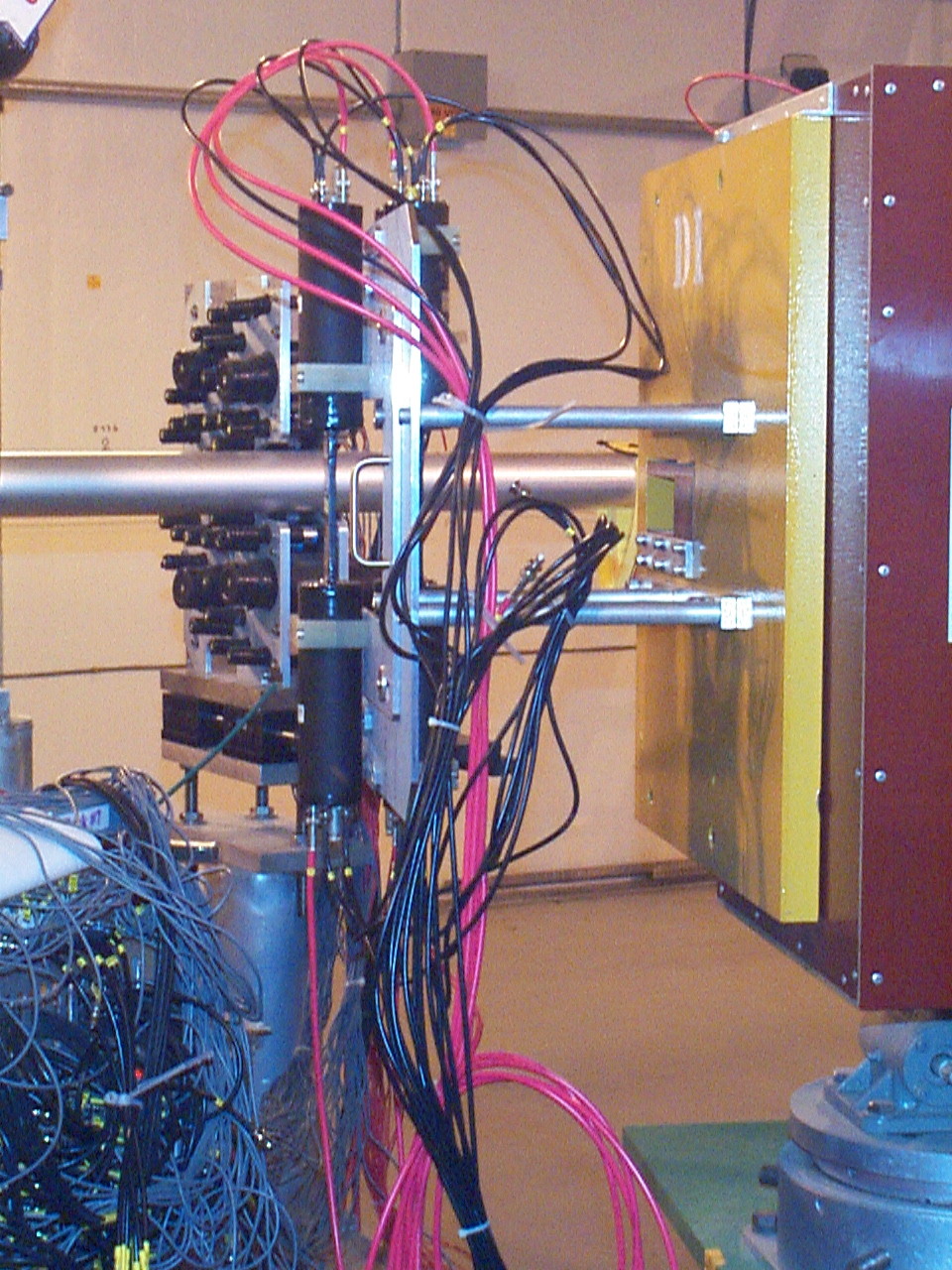

- Side view as seen near front of D1.The slats are at 32 cm in front.

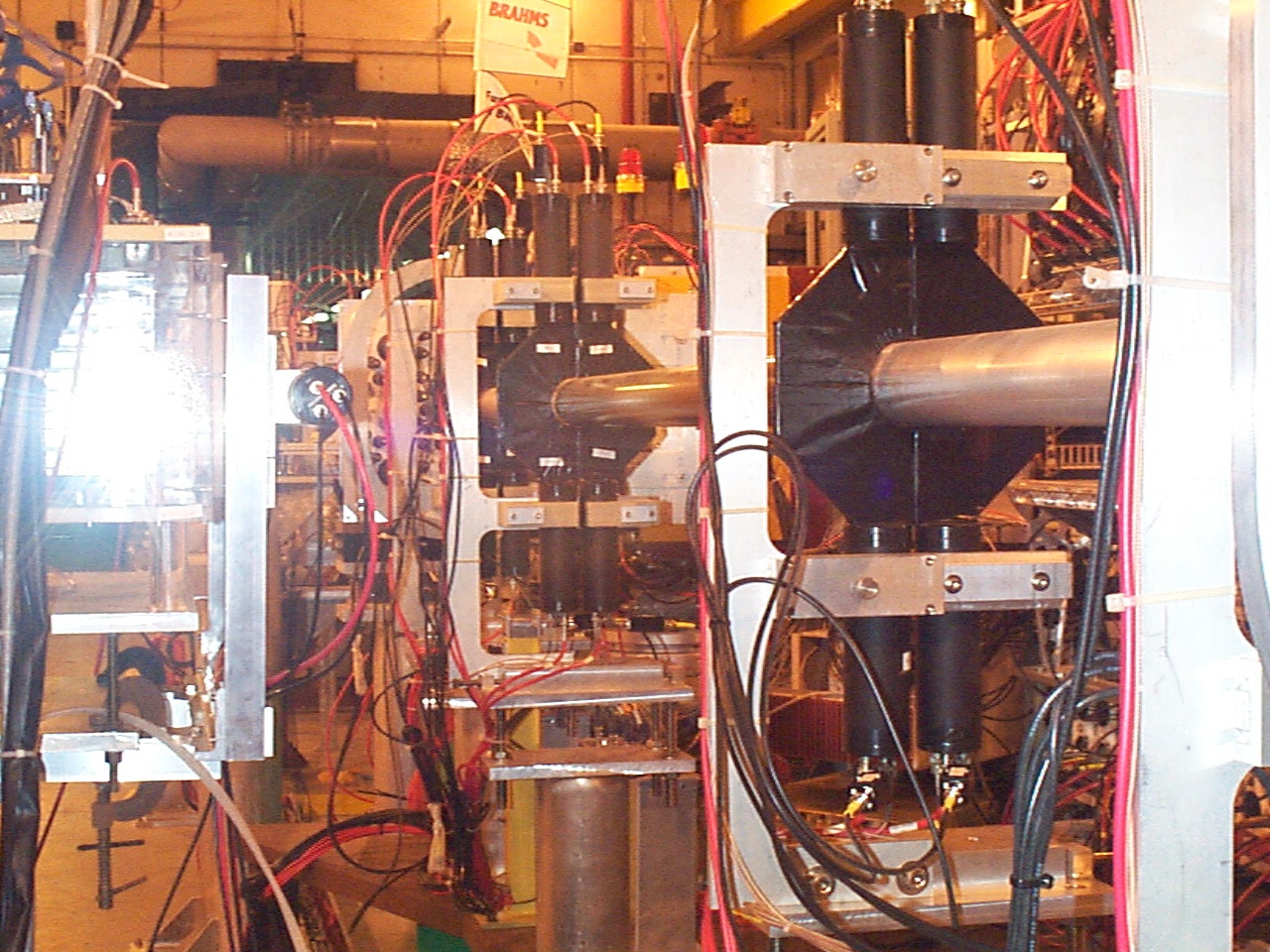

- Front view as seen from near IP.
- Brief description (Pdf) format by Dana.
- Cable connections html table.6 outer BB counters are used for these 6 signals.
- The response from TD1 was analyzed particular to evaluate for requirements in dA and pp run-3.
A brief report (pdf) was written 09/12/02 (fv).

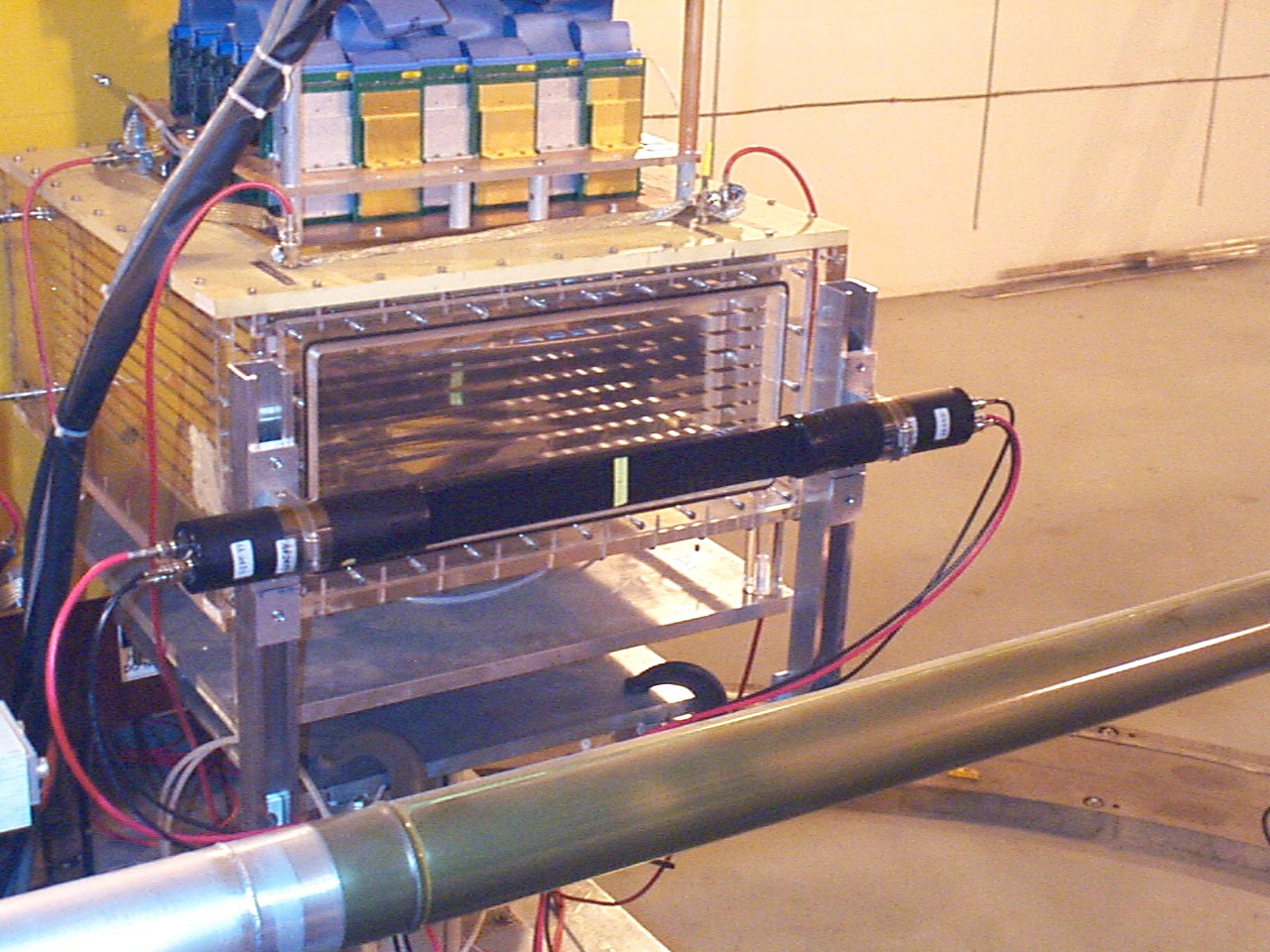

- the other start counter is a long slat just across the front of TPM1.
For particle emerging from the beam- this covers the phi-region needed for full accpetance at the TOFW. With this config the spec can at most go to ~ 50 deg.
- Triggers for pp and dA. An interrim document describes several concerns about this.
(slides by fv).
(pdf document)
